OKW - Robust plastic enclosure, versatile for electrical and electronic applications
Lei 603.00
Lei 506.72
In stock
SKU
C2424361
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

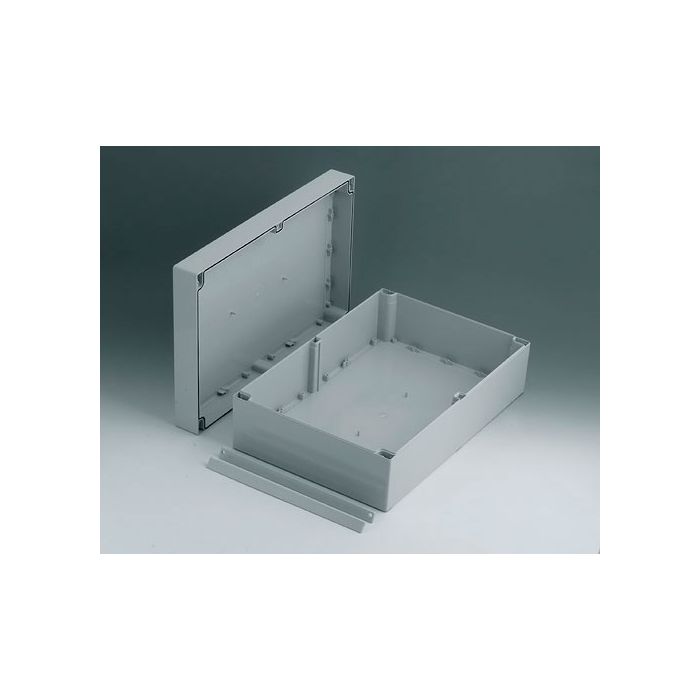

Robust plastic enclosure, versatile for electrical and electronic applications
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards. Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 240 mm |
| Length | 360 mm |
| Height | 120 mm |
| Protection class | IP 66 |
| PCB Length, Base | 327 mm |
| PCB Width, Base | 205 mm |
| PCB Length, Top | 325 mm |
| PCB Width, Top | 208 mm |
| Keypad Length | 322.9 mm |
| Keypad Width | 211.9 mm |
