OKW - Plastic enclosure with dual operating panels, recessed parts, graphic overlays, and battery compartment. [148 mm x 80 mm x 210 mm]
Lei 208.00
Lei 174.79
In stock
SKU
B4056207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

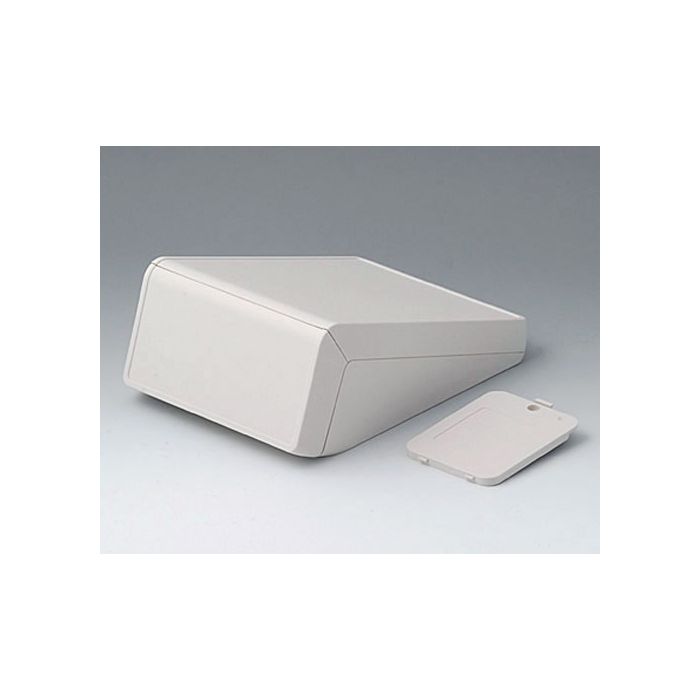

Plastic enclosure with dual operating panels, recessed parts, graphic overlays, and battery compartment.
Plastic enclosure with two operating panels at right angles to each other, optionally for single or dual use. Front part recessed 0.6 mm. Top part recessed 0.6 mm. All-round graphic overlays may also be used! Fastening pillars for mounting of PCBs in top, base and front part. Version With battery compartment 3 x AA. Supply 1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B4056207 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 148 mm |
| Height | 80 mm |
| Depth | 210 mm |
| Protection class | IP 40 |
| PCB Length, Base | 166 mm |
| PCB Width, Base | 132 mm |
| PCB Length, Top | 180 mm |
| PCB Width, Top | 132 mm |
