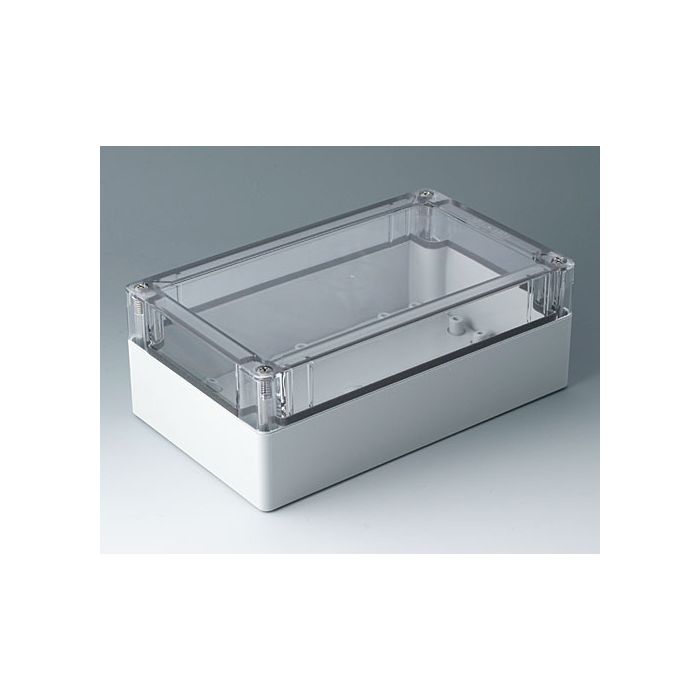

OKW - Two-piece plastic enclosure with sealing, recessed panel, attachment domes, stainless steel lock [122 mm x 202 mm x 75 mm]
Lei 146.00
Lei 122.69
In stock
SKU
C7020044
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Two-piece plastic enclosure with sealing, recessed panel, attachment domes, stainless steel lock
Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer code | C7020044 |
|---|---|
| Manufacturer | OKW |
| Material | ABS/PC (UL 94 HB) |
| Colour | Top part transparent, Bottom part light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 122 mm |
| Length | 202 mm |
| Height | 75 mm |
| Protection class | IP 66, IP 67, IK 07 |
| PCB Length, Base | 171 mm |
| PCB Width, Base | 113 mm |
| Keypad Length | 174.75 mm |
| Keypad Width | 94.75 mm |
