OKW - 2-part plastic enclosure with integrated flanges and screw connection
Lei 95.00
Lei 79.83
Out of stock
SKU
C3207107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

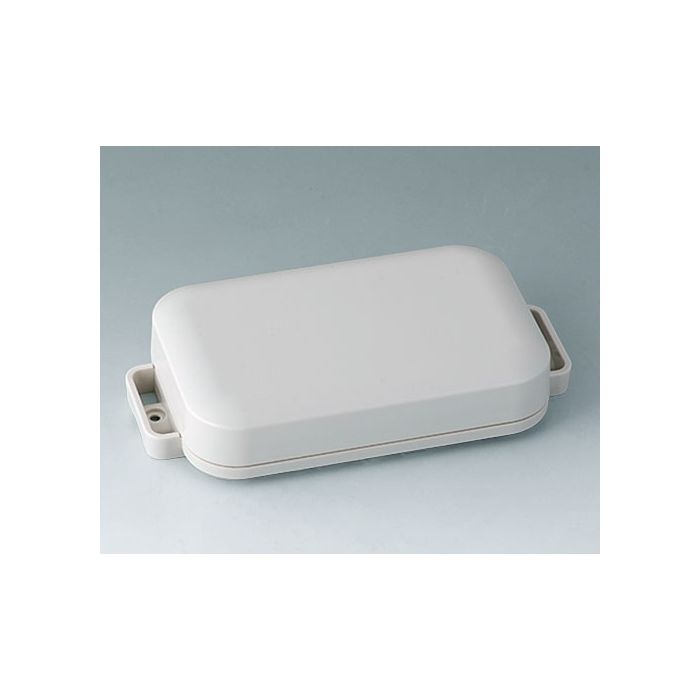

2-part plastic enclosure with integrated flanges and screw connection
2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 78 mm |
| Length | 147 mm |
| Height | 30 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 113 mm |
| PCB Width, Base | 68 mm |
| PCB Length, Top | 113 mm |
| PCB Width, Top | 68 mm |
