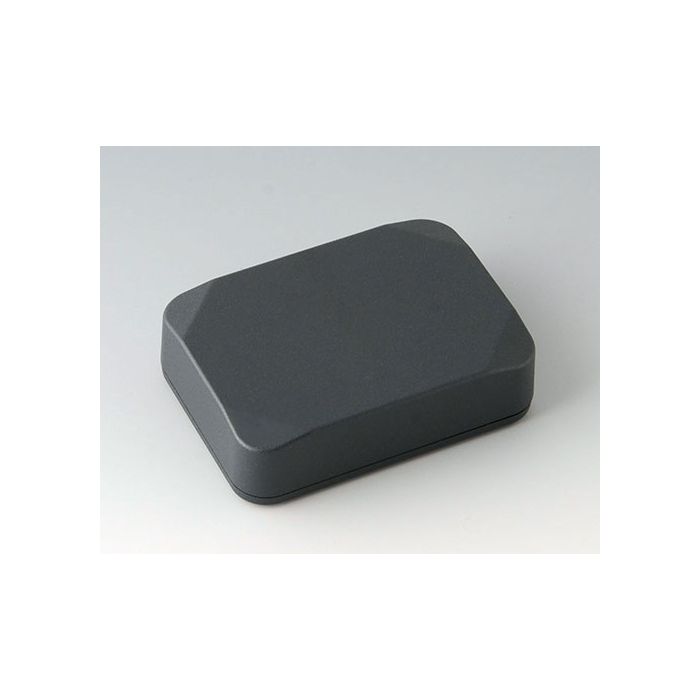

OKW - 2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the
Lei 66.00
Lei 55.46
In stock
SKU
B1824218
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
2-part plastic enclosure with high top part, robust design, tongue and groove connection, Torx stainless steel screws, fixing supports for PCBs and components, hot caulking. Version: High top part. Supply: Top and bottom parts, assembly kit.
2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Top part high
Supply Top and bottom parts, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Version Top part high
Supply Top and bottom parts, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | anthracite grey RAL 7016 |
| Standards | RoHS compliant, REACH compliant |
| Width | 50 mm |
| Length | 70 mm |
| Height | 20 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 62 mm |
| PCB Width, Base | 42 mm |
| PCB Length, Top | 62 mm |
| PCB Width, Top | 42 mm |
