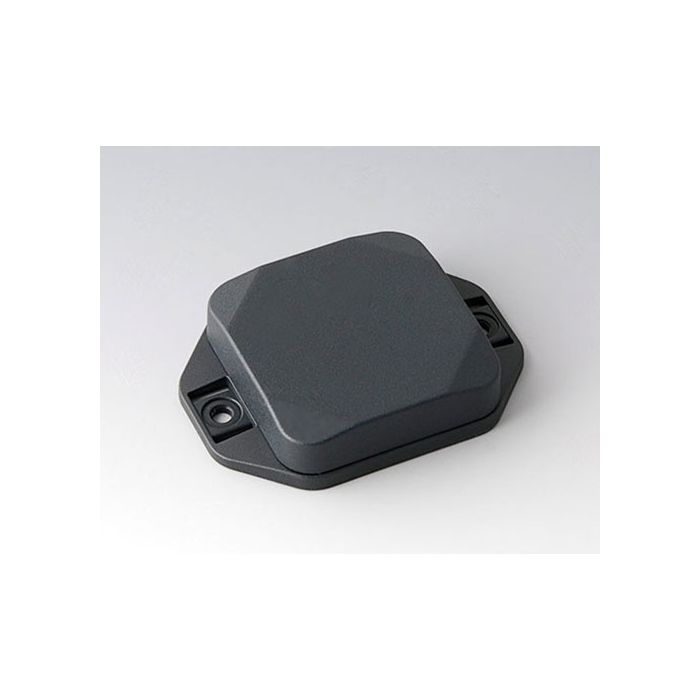

OKW - 2-part plastic enclosure, flat top, flanges for wall mounting, robust design, Torx screws, PCB fixing supports
Lei 63.00
Lei 52.94
In stock
SKU
B1804128
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
2-part plastic enclosure, flat top, flanges for wall mounting, robust design, Torx screws, PCB fixing supports
2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part flat
Supply Top and bottom parts, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Version Bottom part with flanges, top part flat
Supply Top and bottom parts, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B1804128 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | anthracite grey RAL 7016 |
| Standards | RoHS compliant, REACH compliant |
| Width | 50 mm |
| Length | 50 mm |
| Height | 15 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 42 mm |
| PCB Width, Base | 42 mm |
| PCB Length, Top | 42 mm |
| PCB Width, Top | 42 mm |
