OKW - Plastic case with closed front and rear, battery compartment for 9V battery. [72 mm x 33.5 mm x 114 mm]
Lei 80.00
Lei 66.12
In stock
SKU
A9406352
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

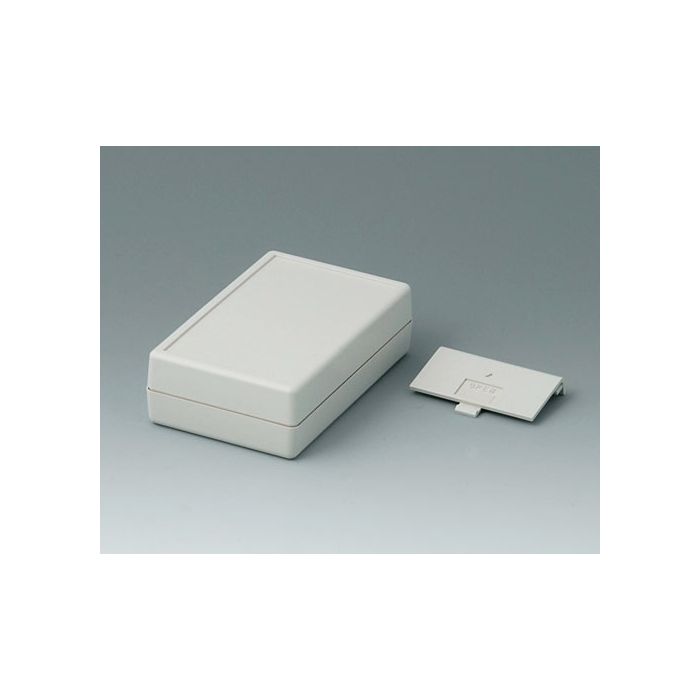

Plastic case with closed front and rear, battery compartment for 9V battery.
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base. Version: With battery compartment for 1 x 9 V flat battery (PP3). Supply: 1 top and base part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9406352 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 72 mm |
| Height | 33.5 mm |
| Depth | 114 mm |
| PCB Length, Base | 75 mm |
| PCB Width, Base | 54 mm |
| PCB Length, Top | 104 mm |
| PCB Width, Top | 54 mm |
| Keypad Length | 101.9 mm |
| Keypad Width | 59.9 mm |
