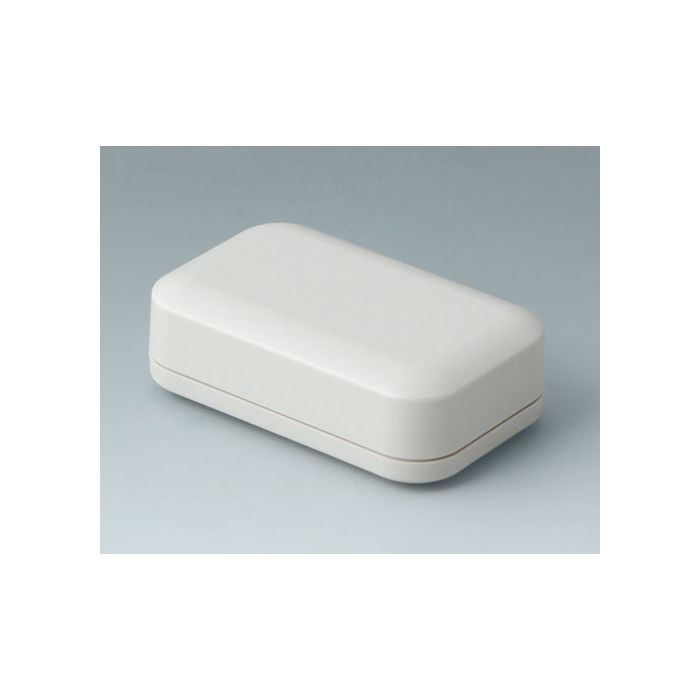

OKW - 2-part plastic enclosure, flat top, 26mm height, robust design, assembly kit with rubber feet [50 mm x 80 mm x 26 mm]
Lei 75.00
Lei 63.03
In stock
SKU
A9403107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
2-part plastic enclosure, flat top, 26mm height, robust design, assembly kit with rubber feet
2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts. Version: Top part "Flat". Supply: Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9403107 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 50 mm |
| Length | 80 mm |
| Height | 26 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 70 mm |
| PCB Width, Base | 40 mm |
| PCB Length, Top | 70 mm |
| PCB Width, Top | 40 mm |
