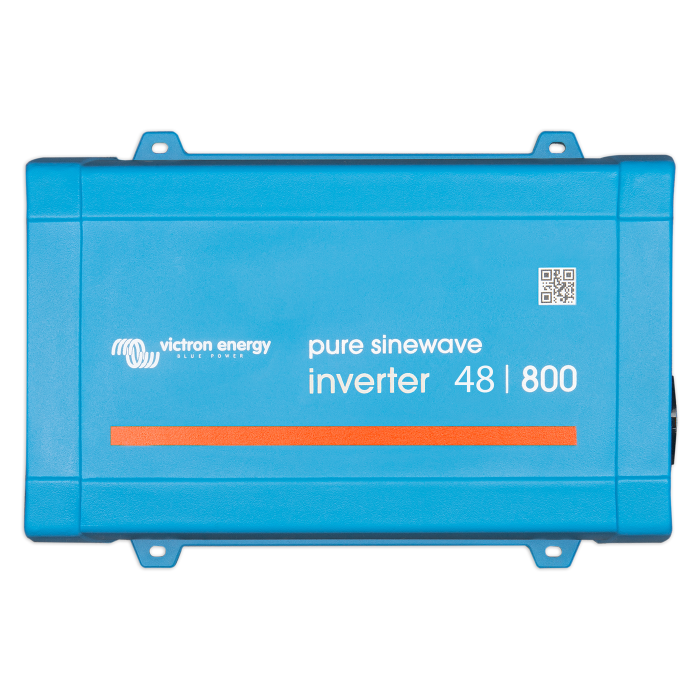

VICTRON ENERGY - PIN481801200 - Phoenix Inverter 48/800 – 800VA / 48V (Schuko)
Lei 1,087.00
Lei 898.35
In stock
SKU
VICPIN481801200
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
This variant: 800VA / 48V, 230V Schuko outlet, VE.Direct
Manufacturer code: PIN481801200 (replaces PIN481800200)
Inverter VE.Direct
Inverters allow you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Models: 250VA, 375VA, 500VA, 800VA, 1200VA, 1600VA
Highlights of the 48/800 model:
- Pure sine wave output 230V / 50Hz, Schuko (CEE 7/4) outlet; continuous power 800VA (650W at 25 °C), peak power 1500W;
- Maximum efficiency 91%; zero-load power 9.5W, only 3W in ECO mode (adjustable start/stop power);
- Fully programmable via VE.Direct port and the VictronConnect app (with the VE.Direct Bluetooth Smart dongle or VE.Direct to USB cable);
- Dynamic (load dependent) low DC shut-down, adjustable alarm/restart levels; remote on/off terminal;
- Protections: output short-circuit, overload, high/low battery voltage, over temperature, excessive DC ripple;
- DC input range 36.8 - 62V; operating temperature -40 to +65 °C (fan assisted cooling); IP21, steel chassis and plastic cover.
Documents & Downloads:
Datasheet Inverter VE.Direct 250VA - 1600VA
Enclosure dimensions 24V/48V 800VA
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | PIN481801200 |
| GTIN code | 8719076056874 |
| Order Unit | Pce |
| Output Voltage | 230V |
| Battery voltage | 48V |
| Colour | blue RAL 5012 |
| Nominal power | 800VA |
| Operating temperature | -40°C to +65°C |
| Humidity | Max. 95% |
| Data communication | VE.Direct |
| Protection class | IP21 |
| Weight Kg | 5,5 Kg |
| Dimensions (h x w x d) | 105 x 216 x 305 mm |
| Standards | Safety: EN-IEC 60335-1, EN-IEC 62109-1 EMC: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 Automotive: ECE R10-4 |
