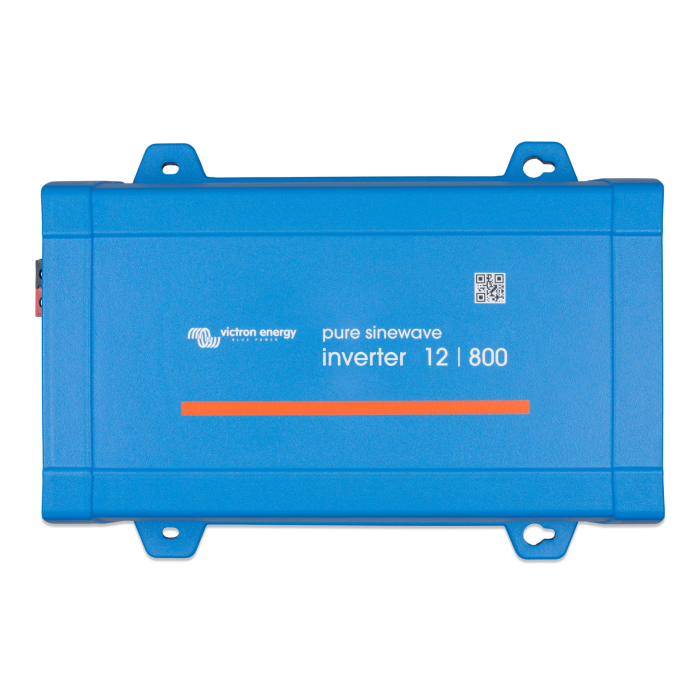

VICTRON ENERGY - Phoenix Inverter 12/800 230V VE.Direct SCHUKO
Lei 1,163.00
Lei 1,066.97
In stock
Only 1 left
SKU
VICPIN121801200
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Pretul afisat este cu 9% TVA pentru persoane fizice sau institutii de stat. Pentru persoane juridice se va recalcula pretul cu 19% TVA dupa plasarea comenzii.
Phoenix Inverter VE.Direct
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Models:250VA, 375VA, 500VA, 800VA, 1200VA
VE.Direct communication port
The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
Monitoring:
• In- and output voltage, % load and alarms
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote on/off
A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.
To transfer the load to another AC source: the automatic transfer switch
For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
DC connection with screw terminals
No special tools needed for installation
Documents & Downloads:
Phoenix Inverter Datasheet VE.Direct 250VA -1200VA
Declaration of Conformity - Phoenix Inverter VE.Direct 250VA - 1200VA
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | PIN121801200 |
| GTIN code | 8719076045373 |
| Order Unit | Pce |
| Output Voltage | 230V |
| Battery voltage | 12V |
| Operating temperature | -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C |
| Humidity | (non-condensing) max 95% |
| Weight Kg | 6 Kg |
| Dimensions (h x w x d) | 105 x 216 x 305 mm |
| Standards | Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Automotive Directive: ECE R10-4 1) Nonlinear load, crest factor 3:1 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high 3) UL 458 only for inverters with GFCI output socket |
