OKW - Enclosure with 1 open side, max. 2 terminal guards, DIN rail mount, easy assembly
Lei 46.00
Lei 38.66
In stock
SKU
B6705107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

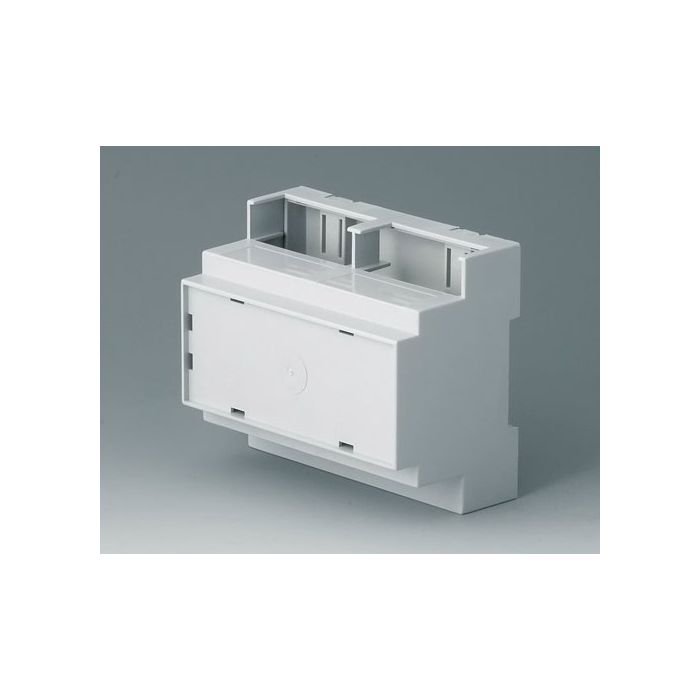

Enclosure with 1 open side, max. 2 terminal guards, DIN rail mount, easy assembly
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Version front closed, connection side with free through passage. Supply 1 bottom part, 3 clips, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0) |
| Colour | light grey |
| Standards | RoHS compliant, DIN EN 60715 TH35, REACH compliant |
| Width | 106 mm |
| Height | 90 mm |
| Depth | 58 mm |
