OKW - Two-part case with sloped operation area, PCB mounting, cable grommets, assembly kit
Lei 167.00
Lei 140.34
In stock
SKU
A9084165
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

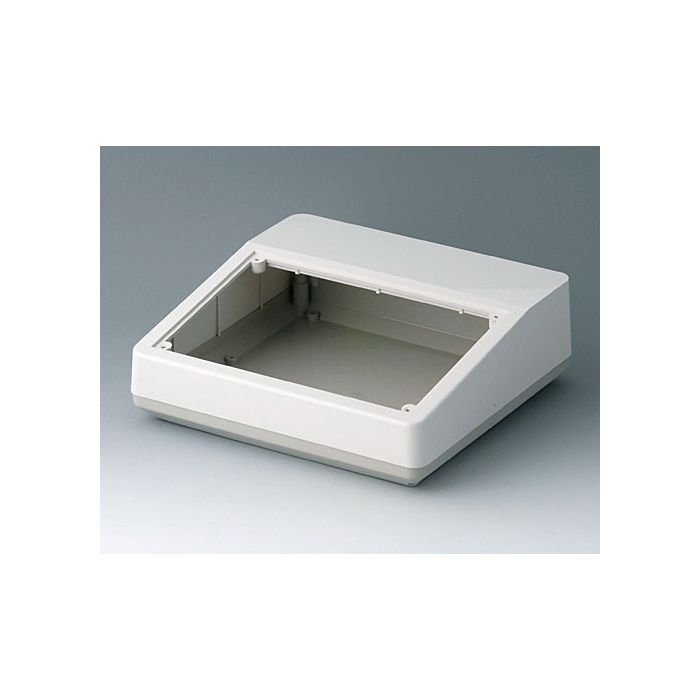

Two-part case with sloped operation area, PCB mounting, cable grommets, assembly kit
Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting. Flat version without attachment. 1 top and base part, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | Top part off-white RAL 9002, Bottom part pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 228 mm |
| Height | 76 mm |
| Depth | 216 mm |
| PCB Length, Base | 196 mm |
| PCB Width, Base | 210 mm |
