OKW - Two-part case for table and wall mounting, ergonomic design, interface-friendly, no battery compartment
Lei 136.00
Lei 114.29
In stock
SKU
A0615007
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

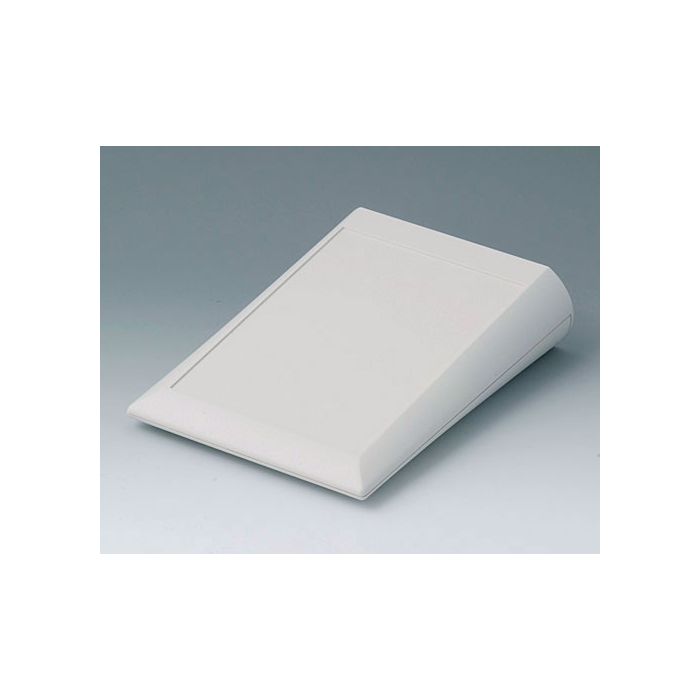

Two-part case for table and wall mounting, ergonomic design, interface-friendly, no battery compartment
Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version Without battery compartment Supply 1 top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0615007 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 150 mm |
| Height | 51.5 mm |
| Depth | 200 mm |
| Protection class | IP 40 |
| PCB Length, Base | 175 mm |
| PCB Width, Base | 124 mm |
| PCB Length, Top | 187 mm |
| PCB Width, Top | 130 mm |
| Keypad Length | 159.8 mm |
| Keypad Width | 117.85 mm |
