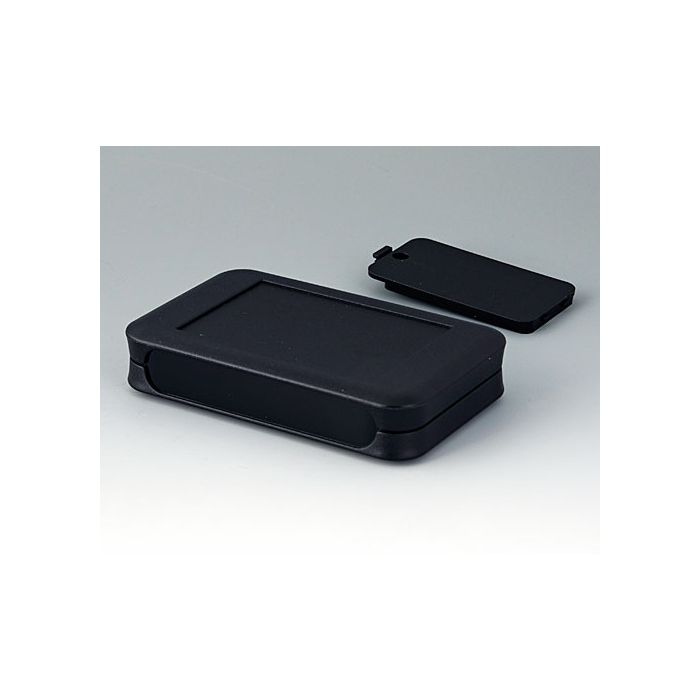

OKW - Pocket-format case with membrane keyboard recess & PCB fixing. Battery compartment for 2 x AA.
Lei 90.00
Lei 75.63
In stock
SKU
A9052219
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Pocket-format case with membrane keyboard recess & PCB fixing. Battery compartment for 2 x AA.
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible. Version With battery compartment for 2 x AA, accessible from the outside Supply Top and bottom part, battery compartment lid, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 117 mm |
| Length | 73 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 23 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 63 mm |
| PCB Width, Top | 108 mm |
| Keypad Length | 51.5 mm |
| Keypad Width | 77.5 mm |
