OKW - Pocket-format case with membrane keyboard recess & PCB fixing options
Lei 67.00
Lei 56.30
In stock
SKU
A9052108
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

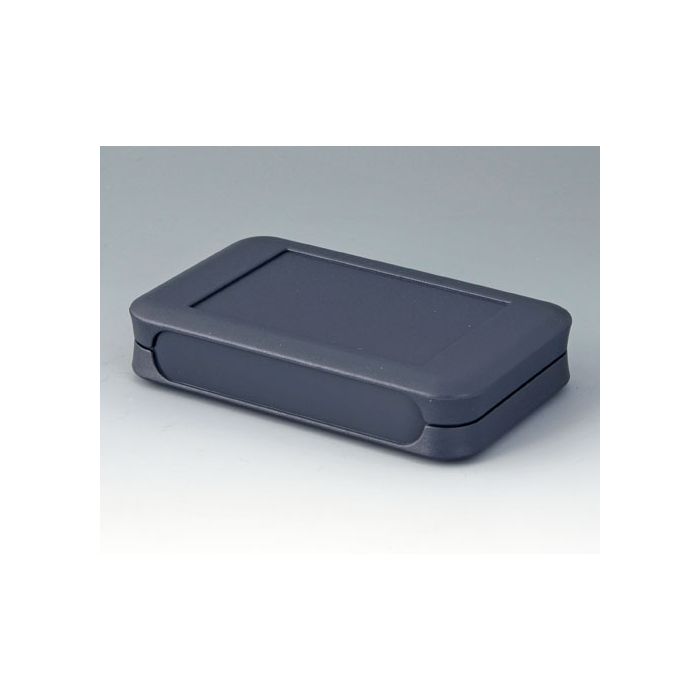

Pocket-format case with membrane keyboard recess & PCB fixing options
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9052108 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 117 mm |
| Length | 73 mm |
| Height | 24 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 63 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 63 mm |
| PCB Width, Top | 108 mm |
| Keypad Length | 51.5 mm |
| Keypad Width | 77.5 mm |
