OKW - Robust pocket-box with sealing, recessed control area, integrated battery compartment.
Lei 63.00
Lei 52.94
Out of stock
SKU
A9070219
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

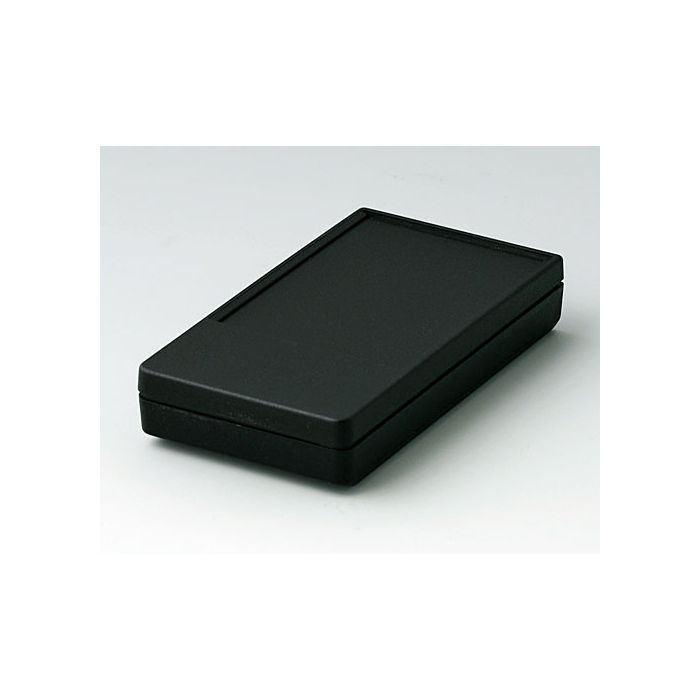

Robust pocket-box with sealing, recessed control area, integrated battery compartment.
Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9070219 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 46 mm |
| Length | 85 mm |
| Height | 16 mm |
| Protection class | IP 54 |
| PCB Length, Base | 44 mm |
| PCB Width, Base | 39 mm |
| Keypad Length | 57.9 mm |
| Keypad Width | 39.9 mm |
