OKW - Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented applications
Lei 309.00
Lei 259.66
In stock
SKU
C6017281
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

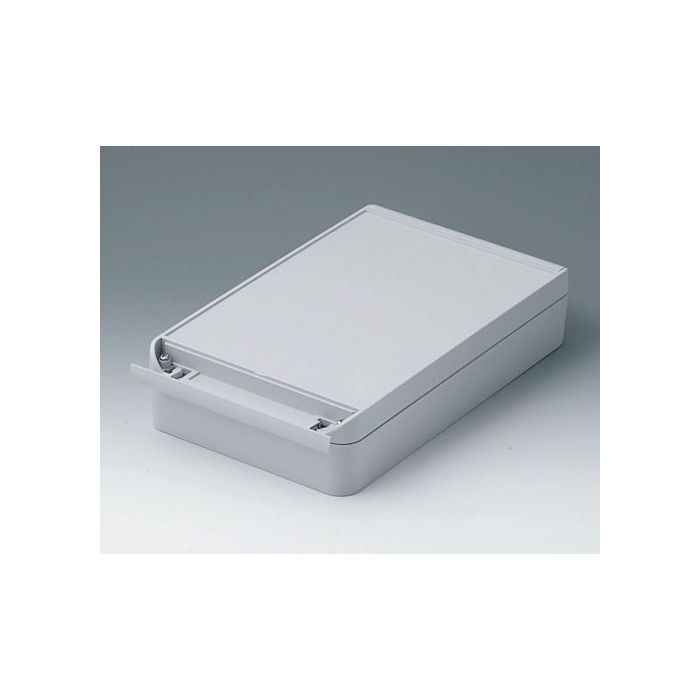

Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented applications
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails. Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | C6017281 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 170 mm |
| Length | 280 mm |
| Height | 60 mm |
| Protection class | IP 65 |
| PCB Length, Base | 241 mm |
| PCB Width, Base | 161 mm |
| PCB Length, Top | 238 mm |
| PCB Width, Top | 159 mm |
| Keypad Length | 235 mm |
| Keypad Width | 161.9 mm |
