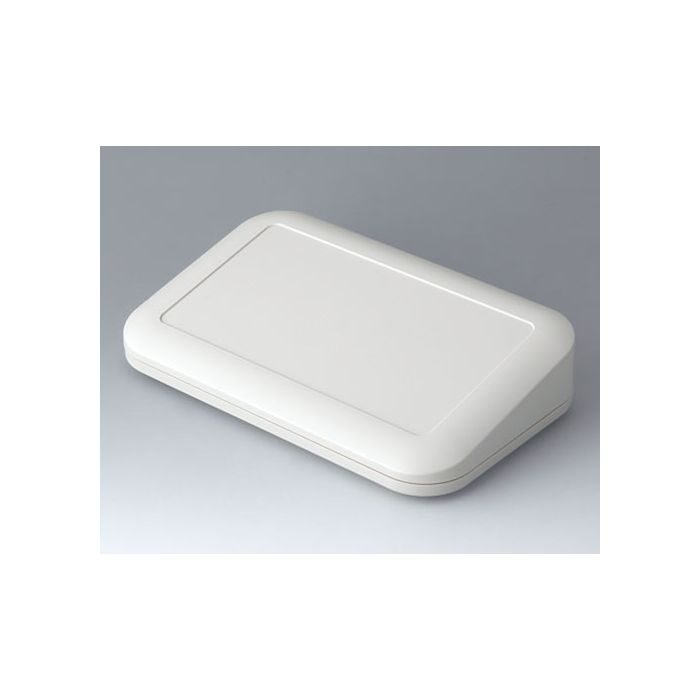

OKW - 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class
Lei 107.00
Lei 89.92
In stock
SKU
A9466107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
2-part plastic enclosure with 12° inclined operating panel, recessed area for membrane keypad, robust design, IP 65 seal available, fastening pillars for PCBs, wall suspension element sold separately.
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 124 mm |
| Length | 200 mm |
| Height | 45 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 190 mm |
| PCB Width, Base | 80 mm |
| PCB Length, Top | 190 mm |
| PCB Width, Top | 80 mm |
| Keypad Length | 160.2 mm |
| Keypad Width | 87.8 mm |
