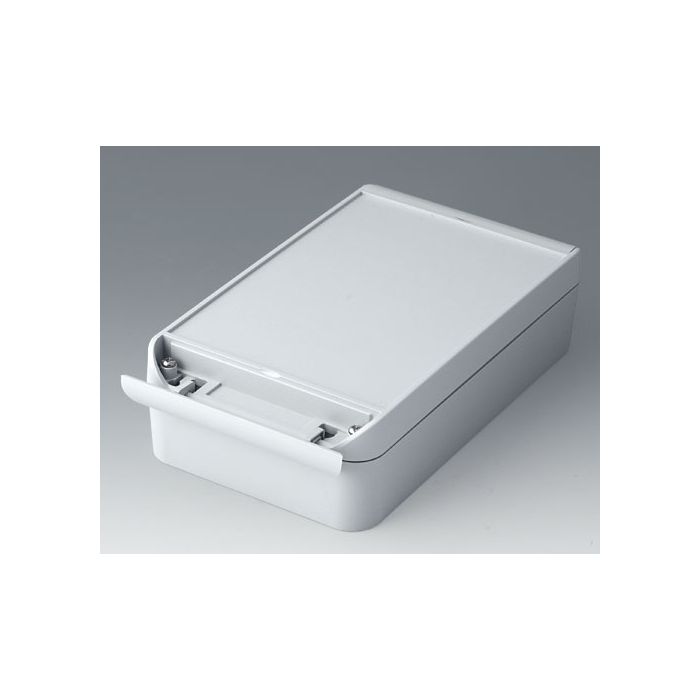

OKW - Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented applications.
Lei 208.00
Lei 174.79
In stock
SKU
C6013221
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented applications.
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | C6013221 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 130 mm |
| Length | 220 mm |
| Height | 60 mm |
| Protection class | IP 66 |
| PCB Length, Base | 181 mm |
| PCB Width, Base | 119.5 mm |
| PCB Length, Top | 178 mm |
| PCB Width, Top | 119 mm |
| Keypad Length | 174.8 mm |
| Keypad Width | 121.6 mm |
