OKW - Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented applications.
Lei 134.00
Lei 112.61
In stock
SKU
C6009121
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

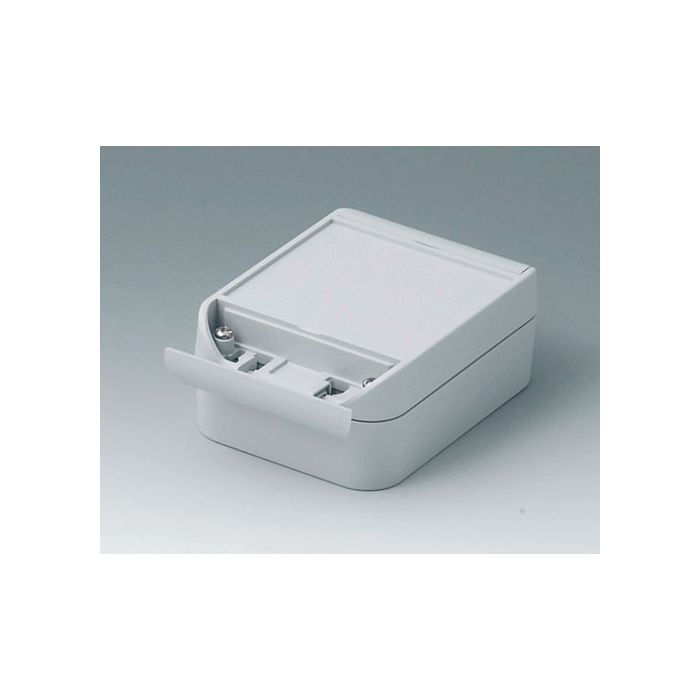

Four-part plastic enclosure with pre-fitted sealing, ideal for design-oriented applications.
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 90 mm |
| Length | 120 mm |
| Height | 50 mm |
| Protection class | IP 66 |
| PCB Length, Base | 81 mm |
| PCB Width, Base | 81 mm |
| PCB Length, Top | 78 mm |
| PCB Width, Top | 79 mm |
| Keypad Length | 75.3 mm |
| Keypad Width | 82 mm |
