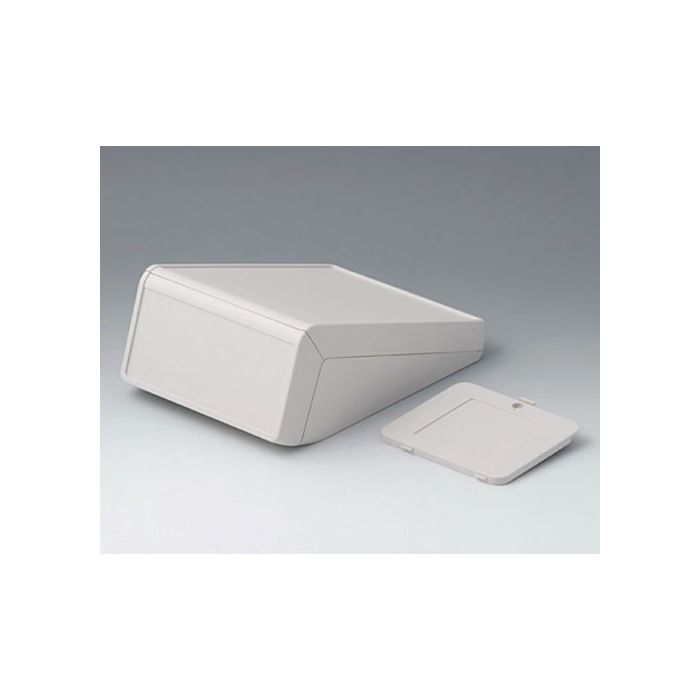

OKW - Plastic enclosure for single or dual use, with battery compartment, membrane keyboard support, and PCB mounting pillars.
Lei 219.00
Lei 184.03
In stock
SKU
B4056317
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Plastic enclosure for single or dual use, with battery compartment, membrane keyboard support, and PCB mounting pillars.
Plastic enclosure with two operating panels rectangular to each other, optionally for single or dual use. Front part recessed 1.4 mm. Top part recessed 1.4 mm. Two membrane keyboards may be used! Fastening pillars for mounting of PCBs in top, base and front part.
Version
With battery compartment 5 x AA
Supply
1 bottom part, top part and front part, 1 battery compartment and lid, battery clips nickel-plated, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 148 mm |
| Height | 80 mm |
| Depth | 210 mm |
| Protection class | IP 40 |
| PCB Length, Base | 166 mm |
| PCB Width, Base | 132 mm |
| PCB Length, Top | 180 mm |
| PCB Width, Top | 132 mm |
| Keypad Length | 178.6 mm |
| Keypad Width | 127.6 mm |
