OKW - 2-part plastic enclosure, flat top, IP65 seal, PCB fastening pillars
Lei 103.00
Lei 86.55
In stock
SKU
A9441107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

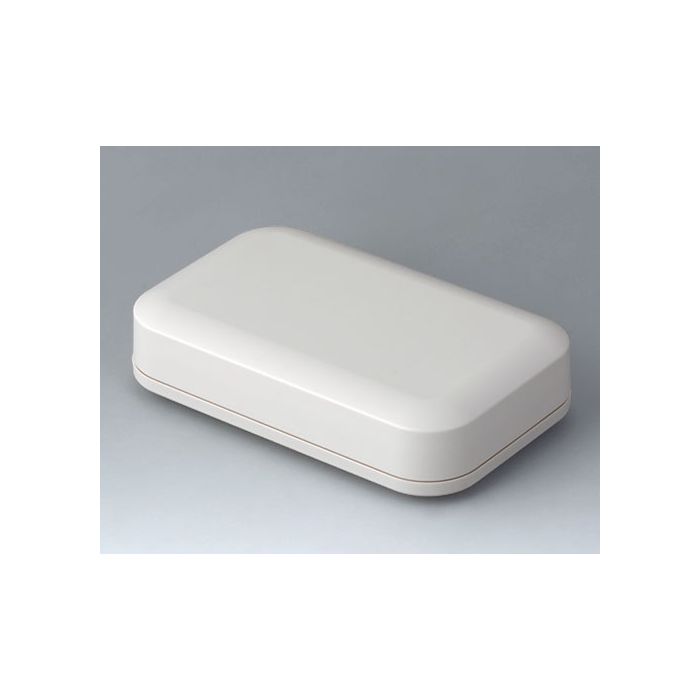

2-part plastic enclosure, flat top, IP65 seal, PCB fastening pillars
2-part plastic enclosure with flat top part, height 35. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 93 mm |
| Length | 150 mm |
| Height | 35 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 108 mm |
| PCB Width, Base | 80 mm |
| PCB Length, Top | 108 mm |
| PCB Width, Top | 80 mm |
