OKW - Enclosure for terminal guards, easy PCB assembly, DIN rail mount
Lei 30.00
Lei 25.21
Out of stock
SKU
B6501121
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

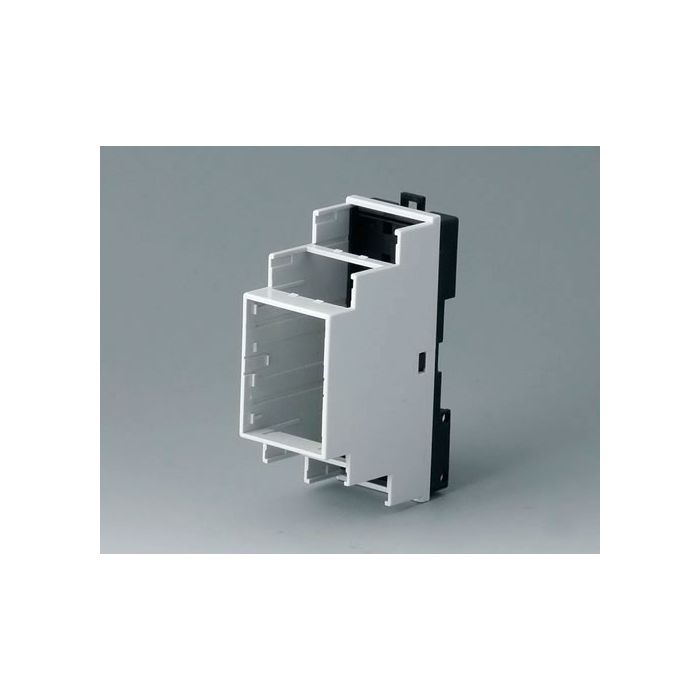

Enclosure for terminal guards, easy PCB assembly, DIN rail mount
Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions. Individual configuration see accessories. 1 base part with locking clip, 1 top part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B6501121 |
|---|---|
| Manufacturer | OKW |
| Material | PC (UL 94 V-0), PPO (UL 94 V-0) |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 35 mm |
| Height | 90 mm |
| Depth | 58 mm |
| PCB Length, Base | 82 mm |
| PCB Width, Base | 29.4 mm |
