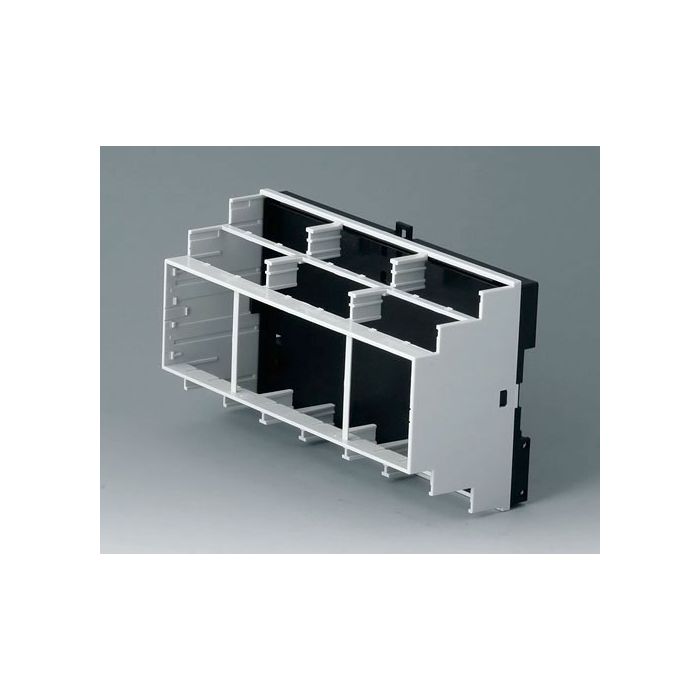

OKW - Enclosure for terminal guards, easy assembly on DIN rails, flexible PCB placement. [157 mm x 90 mm x 58 mm]
Lei 45.00
Lei 37.82
In stock
SKU
B6505121
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Enclosure for terminal guards, easy assembly on DIN rails, flexible PCB placement.
Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions. Individual configuration see accessories. 1 base part with locking clip, 1 top part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B6505121 |
|---|---|
| Manufacturer | OKW |
| Material | PC (UL 94 V-0) Top part, PPO (UL 94 V-0) Bottom part |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 157 mm |
| Height | 90 mm |
| Depth | 58 mm |
| PCB Length, Base | 82.4 mm |
| PCB Width, Base | 151.2 mm |
