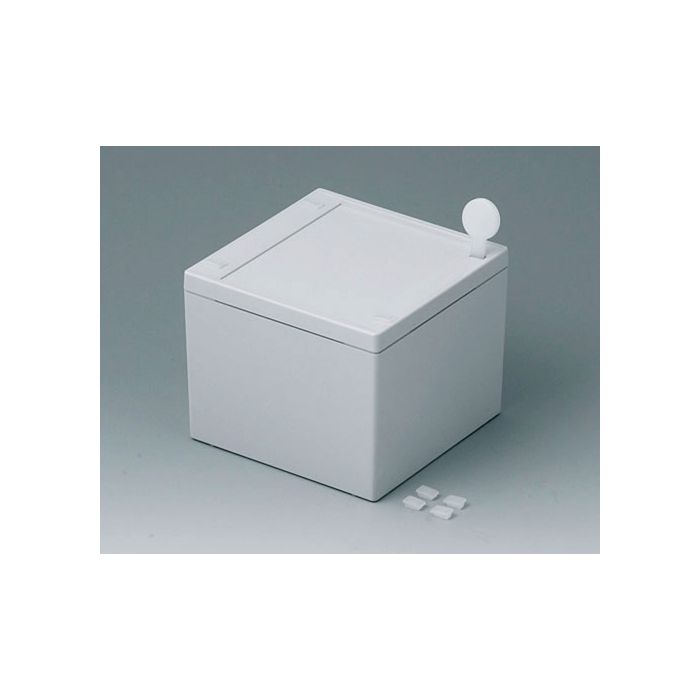

OKW - Snap-in mechanism, membrane keyboard area, invisible wall-mounting, dismantling key included [100 mm x 100 mm x 80 mm]
Lei 76.00
Lei 62.81
In stock
SKU
C3010101
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Snap-in mechanism, membrane keyboard area, invisible wall-mounting, dismantling key included
Top and base parts are fitted together using a unique snap-in mechanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part. Supply: 1 top and base part with sealing, covers for the locking openings, dismantling key.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | C3010101 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 100 mm |
| Length | 100 mm |
| Height | 80 mm |
| Protection class | IP 65 |
| PCB Length, Base | 69 mm |
| PCB Width, Base | 91 mm |
| PCB Length, Top | 68 mm |
| PCB Width, Top | 90 mm |
| Keypad Length | 90.1 mm |
| Keypad Width | 69.8 mm |
