OKW - Four-part case with secure assembly, protected operating area, integrated battery supports.
Lei 195.00
Lei 163.87
In stock
SKU
A9093108
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

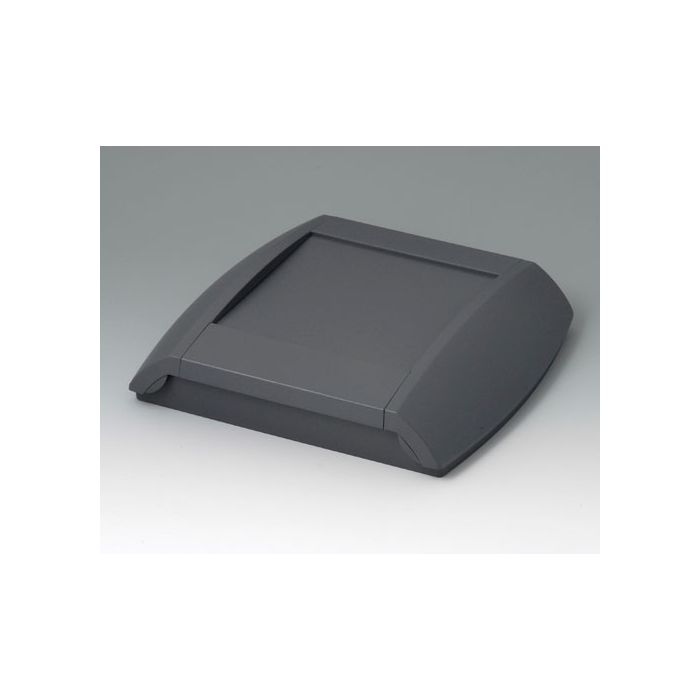

Four-part case with secure assembly, protected operating area, integrated battery supports.
Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 210 mm |
| Height | 48 mm |
| Depth | 200 mm |
| Protection class | IP 40 |
| PCB Length, Base | 120 mm |
| PCB Width, Base | 180 mm |
| PCB Length, Top | 120 mm |
| PCB Width, Top | 180 mm |
| Keypad Length | 127.6 mm |
| Keypad Width | 119.7 mm |
