OKW - Case shell with thread and fixing towers, for membrane keyboards.
Lei 197.00
Lei 165.55
In stock
SKU
C4203001
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

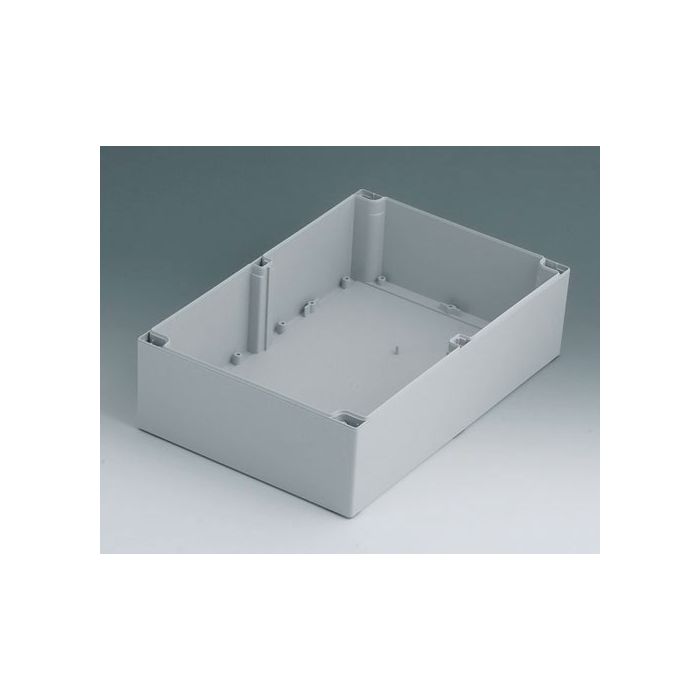

Case shell with thread and fixing towers, for membrane keyboards.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case. 1 case shell with tongue
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 200 mm |
| Length | 300 mm |
| Height | 80 mm |
| PCB Length, Base | 266 mm |
| PCB Width, Base | 165 mm |
| Keypad Length | 262.6 mm |
| Keypad Width | 172.1 mm |
