OKW - Ergonomic body-worn enclosure with protective keyboard area and flat top.
Lei 117.00
Lei 98.32
Out of stock
SKU
B7010109
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

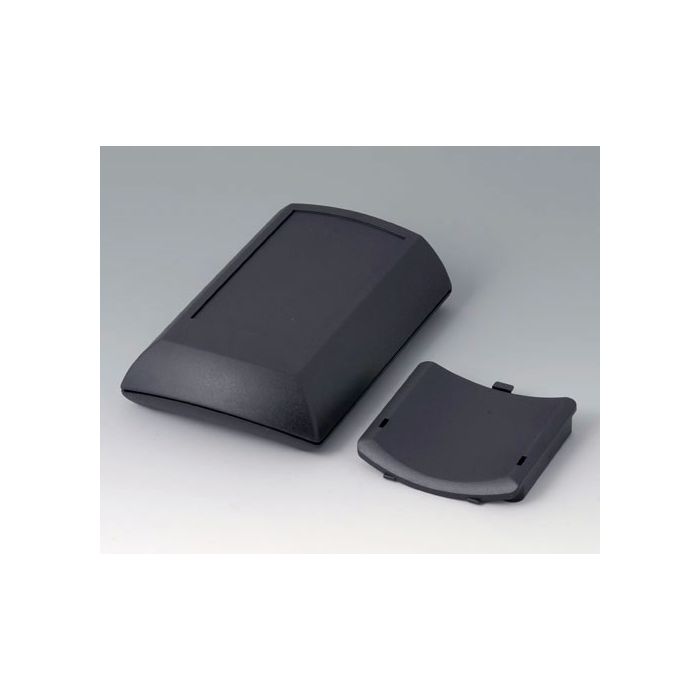

Ergonomic body-worn enclosure with protective keyboard area and flat top.
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory). Version: With flat top part. Supply: 1 top and 1 bottom part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 100 mm |
| Length | 150 mm |
| Height | 40 mm |
| Protection class | IP 54 opt. |
| PCB Length, Top | 128 mm |
| PCB Width, Top | 72 mm |
| Keypad Length | 101.9 mm |
| Keypad Width | 58.3 mm |
