OKW - Single-piece injection moulded case with snap-on rear frame and panels. DIN IEC 61554 compliant.
Lei 75.00
Lei 63.03
In stock
SKU
B6021031
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Single-piece injection moulded case with snap-on rear frame and panels. DIN IEC 61554 compliant.

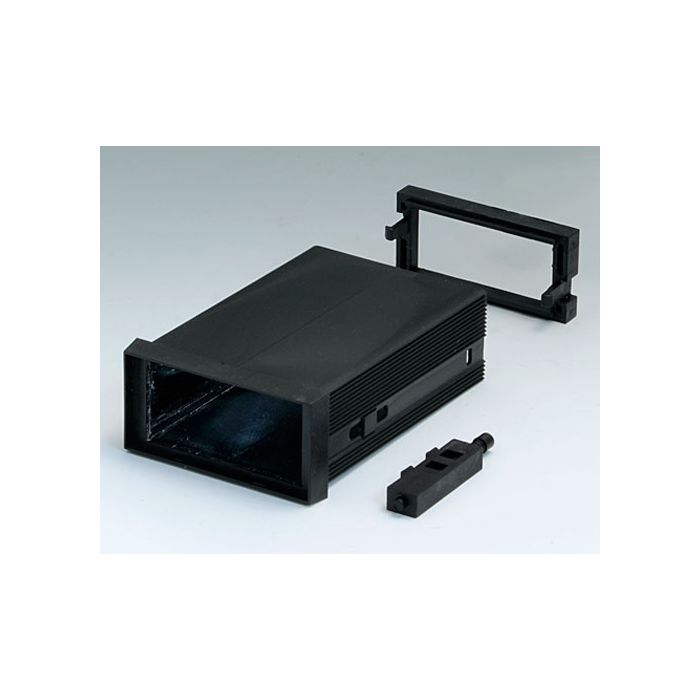

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554. Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B6021031 |
|---|---|
| Manufacturer | OKW |
| Material | PPO (UL 94 V-0) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant, DIN IEC 61554 |
| Width | 72 mm |
| Length | 100 mm |
| Height | 36 mm |
