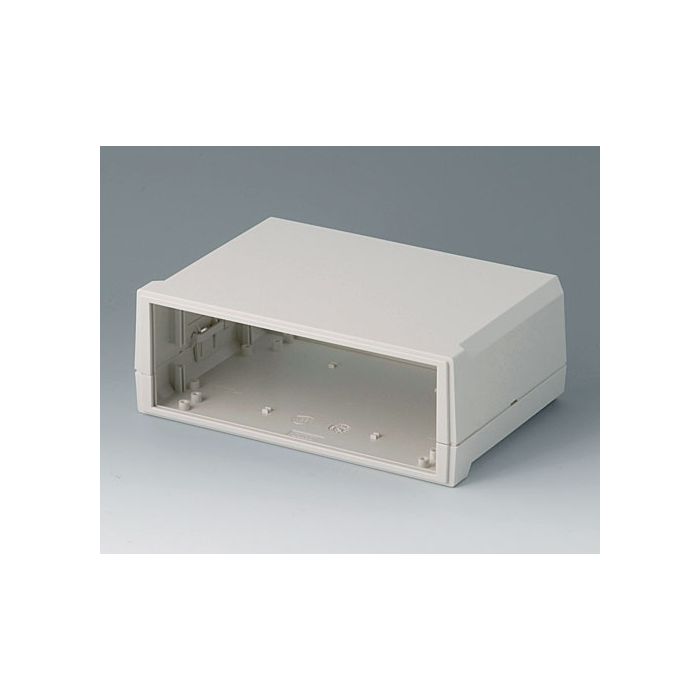

OKW - Desktop case with flat base, high top, screwless assembly, front/rear open, PCB screw towers, vertical guides, front/rear panels slide in, 1 top/base part, 4 case feet [205 mm x 75 mm x 140 mm]
Lei 135.00
Lei 113.45
In stock
SKU
B3020127
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Desktop case with flat base, high top, screwless assembly, front/rear open, PCB screw towers, vertical guides, front/rear panels slide in, 1 top/base part, 4 case feet
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory. Supply: 1 top and base part, 4 self-adhesive case feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B3020127 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 205 mm |
| Height | 75 mm |
| Depth | 140 mm |
| Protection class | IP 40 |
| PCB Length, Base | 178 mm |
| PCB Width, Base | 125 mm |
| Keypad Length | 181 mm |
| Keypad Width | 63 mm |
