OKW - Complete case for single-Eurocards 100x160mm
Lei 182.00
Lei 152.94
In stock
SKU
B2213007
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

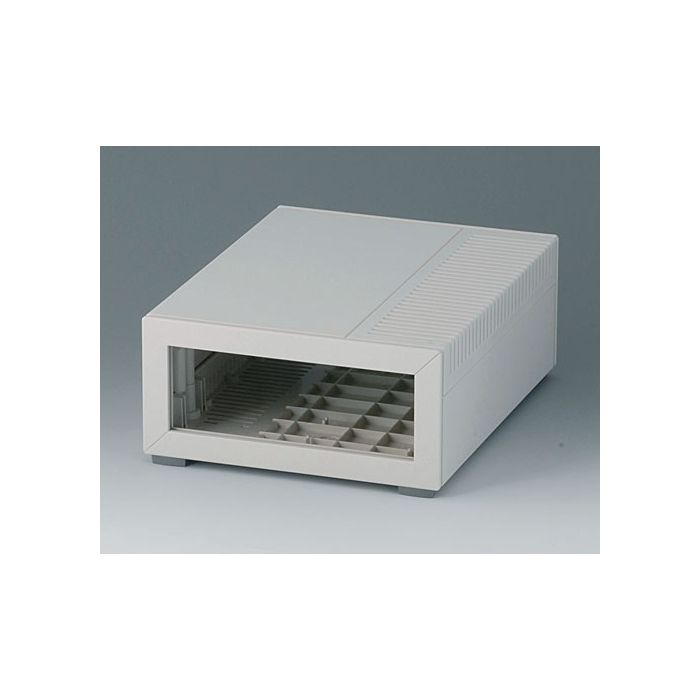

Complete case for single-Eurocards 100x160mm
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support. Supply: 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 160 mm |
| Length | 200 mm |
| Height | 74 mm |
| Protection class | IP 40 |
| PCB Length, Base | 130 mm |
| PCB Width, Base | 185 mm |
| Keypad Length | 132 mm |
| Keypad Width | 46 mm |
