OKW - 2-part plastic enclosure with flat top, robust design, Torx screws, PCB fixing supports.
Lei 60.00
Lei 50.42
In stock
SKU
B1802117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

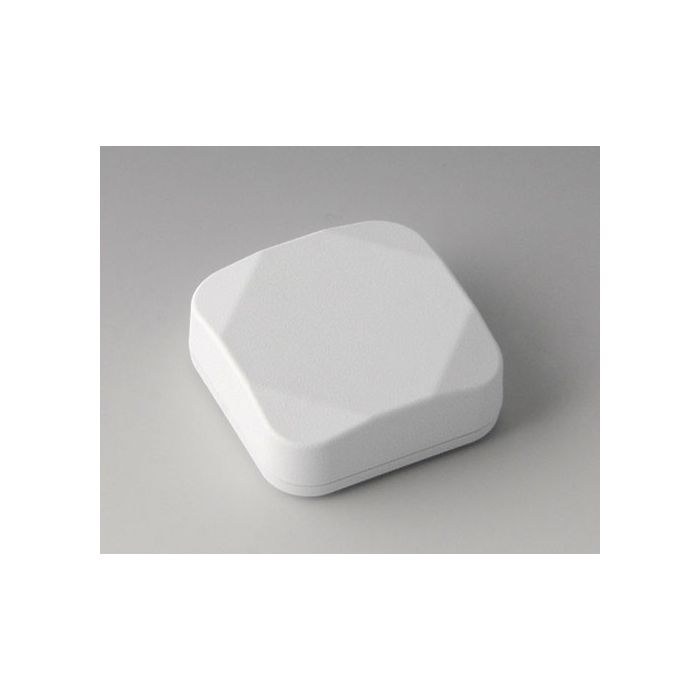

2-part plastic enclosure with flat top, robust design, Torx screws, PCB fixing supports.
2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | traffic white RAL 9016 |
| Standards | RoHS compliant, REACH compliant |
| Width | 40 mm |
| Length | 40 mm |
| Height | 15 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 32 mm |
| PCB Width, Base | 32 mm |
| PCB Length, Top | 32 mm |
| PCB Width, Top | 32 mm |
