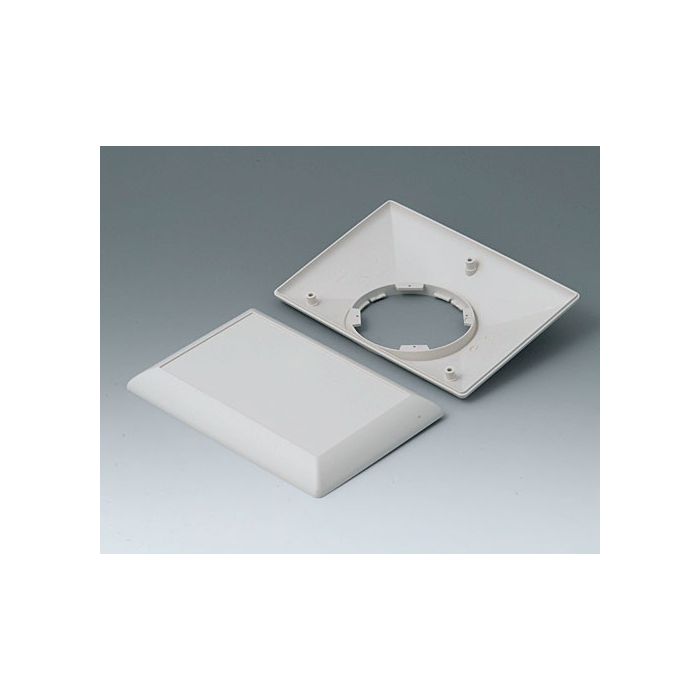

OKW - Assembly unit with screw pillars for PCBs and battery compartment, top part for membrane keyboards, incl. 1 top and bottom part E160 F
Lei 88.00
Lei 73.95
In stock
SKU
B5017207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Assembly unit with screw pillars for PCBs and battery compartment, top part for membrane keyboards, incl. 1 top and bottom part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article. Version Bottom part "inclined". Supply 1 top and bottom part E160 F, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 110 mm |
| Length | 160 mm |
| Height | 38 mm |
| PCB Length, Top | 144 mm |
| PCB Width, Top | 78 mm |
| Keypad Length | 129 mm |
| Keypad Width | 79 mm |
