OKW - Assembly unit with bayonet lock and screw pillars for PCBs and battery compartment. Includes top and bottom parts R110 F. [38 mm]
Lei 61.00
Lei 51.26
In stock
SKU
B5010207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

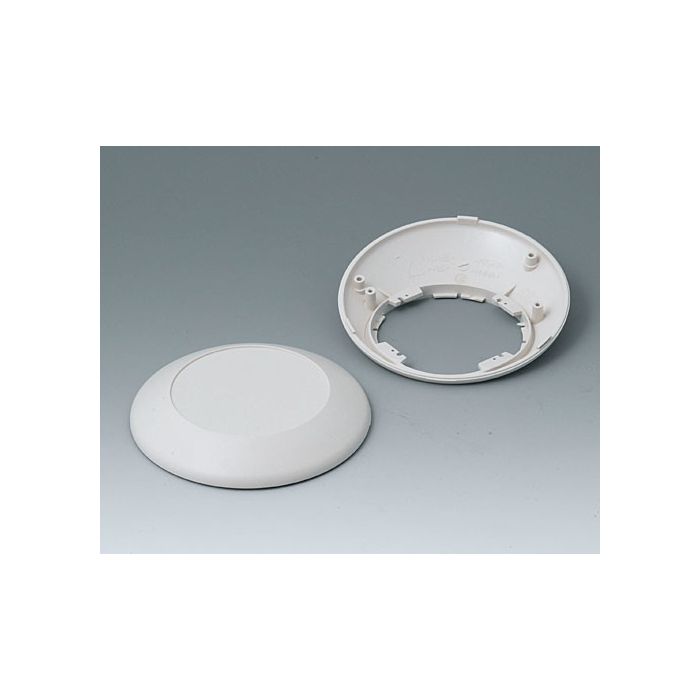

Assembly unit with bayonet lock and screw pillars for PCBs and battery compartment. Includes top and bottom parts R110 F.
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article. Version Bottom part "inclined". Supply 1 top and bottom part R110 F, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B5010207 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Height | 38 mm |
| Diameter | 110 mm |
| PCB Length, Base | 82 mm |
| Keypad Length | 72 mm |
