OKW - Pocket-format case with membrane keyboard recess, PCB fixing, IP54 protection option
Lei 45.00
Lei 37.82
Out of stock
SKU
A9050107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

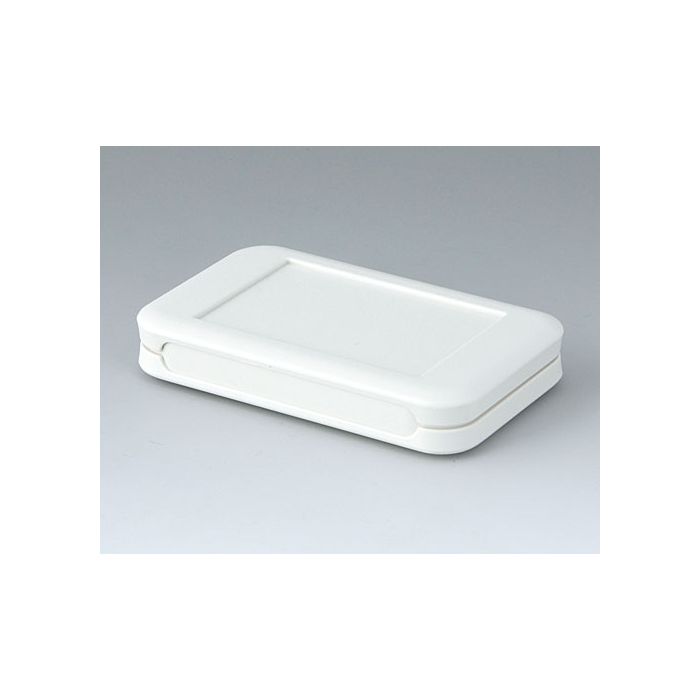

Pocket-format case with membrane keyboard recess, PCB fixing, IP54 protection option
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Version Without battery compartment Supply Top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9050107 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 82 mm |
| Length | 51 mm |
| Height | 14 mm |
| Protection class | IP 54 opt. |
| PCB Length, Base | 43 mm |
| PCB Width, Base | 75 mm |
| Keypad Length | 36.1 mm |
| Keypad Width | 54.6 mm |
