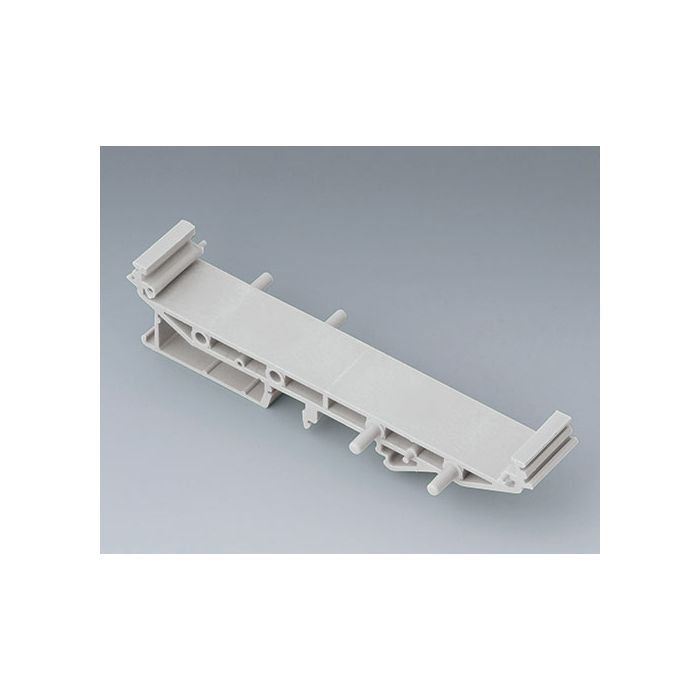

OKW - Modular design with plug-in connection, suitable for DIN EN 60715, includes 1 intermediate part with foot
Lei 7.97
Lei 6.70
In stock
SKU
B6724442
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Modular design with plug-in connection, suitable for DIN EN 60715, includes 1 intermediate part with foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32). Supply 1 intermediate part with foot
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PA 6 (30) (UL 94 V-0) |
| Colour | light grey |
| Standards | RoHS compliant, DIN EN 60715 G32, DIN EN 60715 TH35, DIN EN 60715 TH15, REACH compliant |
| Width | 18.5 mm |
| Length | 118 mm |
| Height | 27.5 mm |
| PCB Length, Base | 107 mm |
| PCB Width, Base | 18.5 mm |
