OKW - Modern, flat assembly unit with recessed area for keyboards. Includes top and bottom parts with screws.
Lei 28.34
Lei 23.82
Out of stock
SKU
B9006907
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

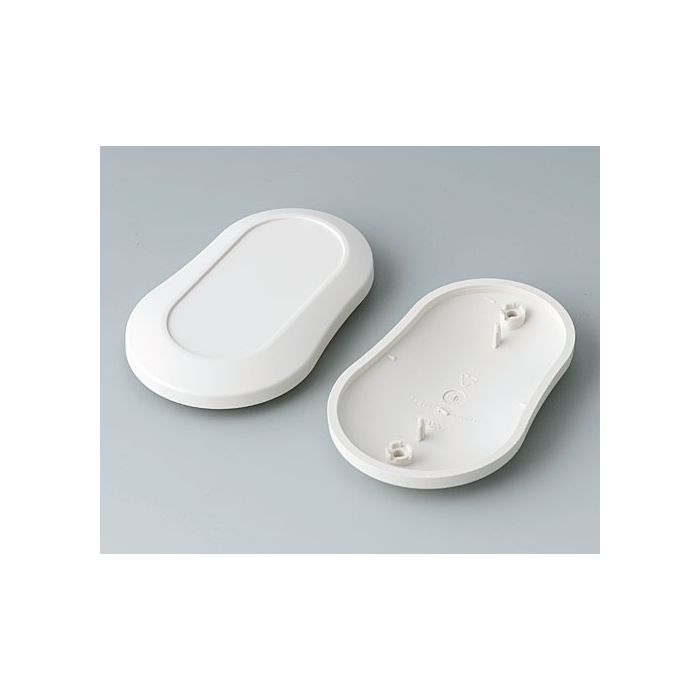

Modern, flat assembly unit with recessed area for keyboards. Includes top and bottom parts with screws.
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DL as separate article necessary. Supply: 1 top and bottom part DL, 2 self-tapping screws.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 53 mm |
| Length | 84 mm |
| Height | 19 mm |
| PCB Length, Base | 56 mm |
| PCB Width, Base | 44.8 mm |
| Keypad Length | 64 mm |
| Keypad Width | 30.2 mm |
