FINDER - 40.52.9.048.0000 - Miniature PCB relay CO (nPDT), 48 V, Standard, 2 pole, 8 A, AgNi, DC, PCB/plug-in 5mm pinning

This variant: 40.52.9.048.0000 — DC, CO (nPDT), PCB/plug-in 5mm pinning, 48 V, AgNi, Standard, 2 pole, 8 A

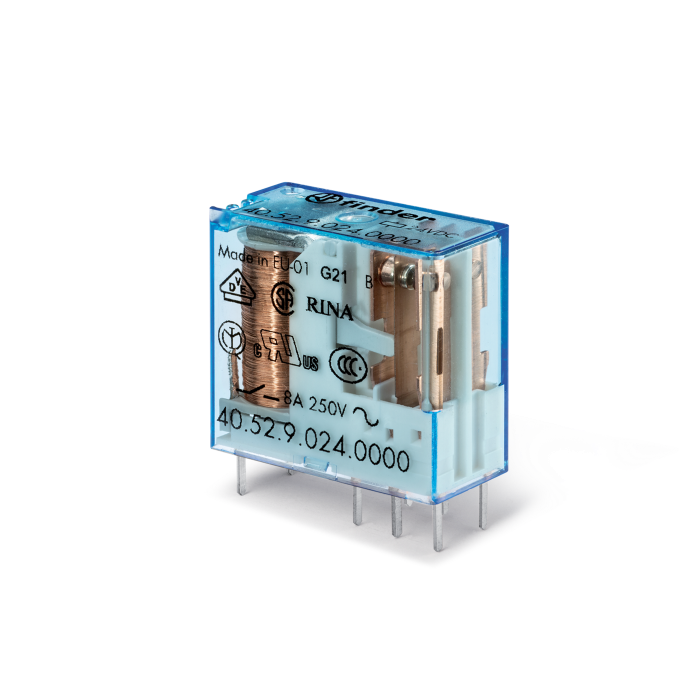

Type 40.52 miniature relay 1 CO 8 A, 5.0 mm pin pitch for printed circuit boards, and plug-in with the 95 Series sockets.

Features include:

• Pin length 3.5 mm for PCB mounting
• Pin length 5.3 mm for plug-in relays
• DC coil (650 mW or 500 mW)
• Variant with cadmium-free contacts
• 8 mm, 6 kV (1.2/50µs) insulation between coil and contacts
• Compliance with glow wire test according to EN 60335-1
• For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
• Protection category:
  • RT II – flux proof (Standard)
  • RT III – washable (Special version)

Documentation:

• Report
• Technical datasheet
• Declaration of conformity
