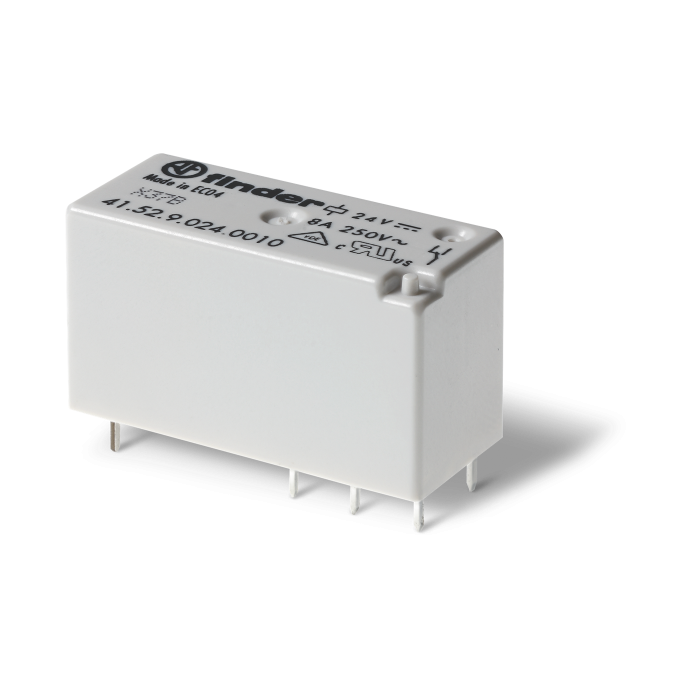

FINDER - 41.52.9.110.0010 - Miniature PCB relay CO (nPDT), 110 V, Flux proof (RT II), 2 pole, 8 A, AgNi, DC, PCB 5mm pinning

This variant: 41.52.9.110.0010 — DC, CO (nPDT), PCB 5mm pinning, 110 V, AgNi, Flux proof (RT II), 2 pole, 8 A

Type 41.52 low profile PCB relays, 2 CO 8 A (pin pitch 5.0 mm) for direct PCB mounting or with 93 and 95 Series sockets.
Suitable for direct mount on a printed circuit or via a socket, and for mount on a 35 mm rail (EN 60715) on sockets with box clamp or screwless terminals.

Available version 41.52.6.xxx, 2 pole, 8A, PCB direct mount.

Features include:

• AC and DC coil
• 8 mm, 6 kV (1.2/50 μs) between coil and contacts
• Cadmium-free contacts
• Flux proof: RT II standard, (also available in RT III version)

Also available for IECEx/ATEX/HazLoc versions.

Documentation:

• Report
• Technical datasheet
• Instruction manual
• Declaration of conformity
