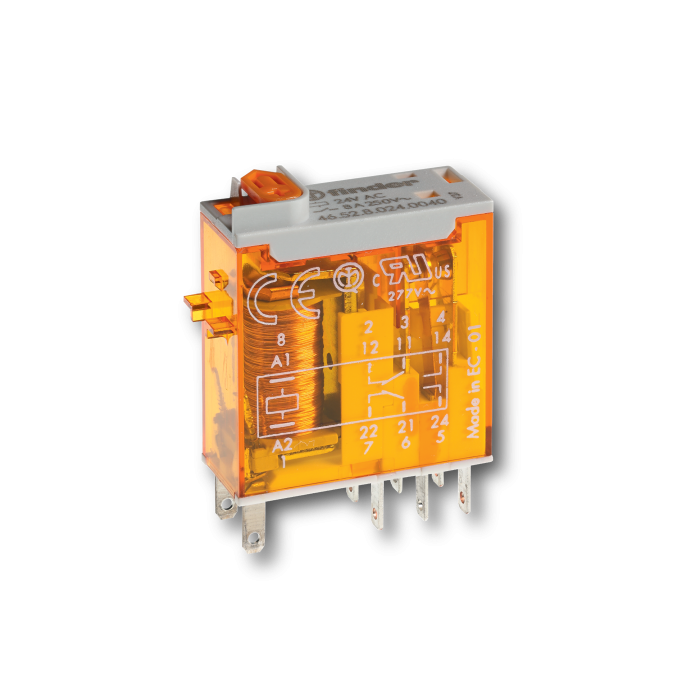

FINDER - 46.52.8.230.0040 - Miniature industrial relay CO (nPDT), 230 V, Standard, 2 pole, 8 A, AgNi, AC (50/60 Hz), Spade/blade solder terminal (2.5x0.5)mm, Lockable test button + mechanical indicator

This variant: 46.52.8.230.0040 — AC (50/60 Hz), CO (nPDT), Spade/blade solder terminal (2.5x0.5)mm, 230 V, AgNi, Lockable test button + mechanical indicator, Standard, 2 pole, 8 A

The Type 46.52 miniature industrial relay is an industrial power relay for socket mount or direct connection via Faston connectors. 2 changeover 8 A and plug-in/solder terminals. Also available for railway applications (Type 46.52T).

Features include:

• AC or DC coil
• Available with: lockable test button, mechanical indicator and LED
• 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
• Cadmium-free contacts
• For use with 97 Series sockets for printed circuit board, solder or for 35 mm rail (EN 60715) mountingwith push-in, spring or screwless terminals
• For use with 99 Series Coil Indication and EMC suppression modules and Type 86.30 timer modules
• Adaptors for alternative mount arrangements
• European patent

Documentation:

• Technical datasheet
• Declaration of conformity
