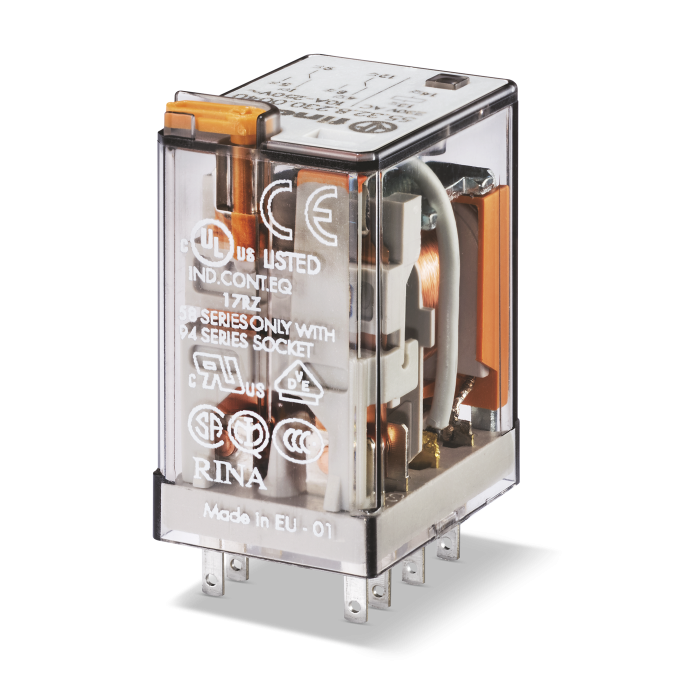

FINDER - 55.32.8.230.0040 - Miniature general purpose relay CO (nPDT), 230 V, Standard, 2 pole, 10 A, AgNi, AC (50/60 Hz), Plug-in, Lockable test button + mechanical indicator

This variant: 55.32.8.230.0040 — AC (50/60 Hz), CO (nPDT), Plug-in, 230 V, AgNi, Lockable test button + mechanical indicator, Standard, 2 pole, 10 A

Type 55.32 General purpose plug-in relays. 2 CO 10 A. For use with 94 Series sockets.

Features include:

• AC or DC coil
• Lockable test button option and mechanical indicator as standard
• Variant with LED and integrated protection circuit
• For use with 94 Series sockets for printed circuit board, solder or for 35mm rail mount (EN 60715) with push-in, screw or screwless terminals
• For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
• Adaptors for alternative mount available
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• Contact material options
• European patent

Documentation:

• Technical datasheet
• Declaration of conformity
