OKW - Medium-sized handheld box with large cutout area and keyboard control space
Lei 182.00
Lei 152.94
In stock
SKU
A9074227
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

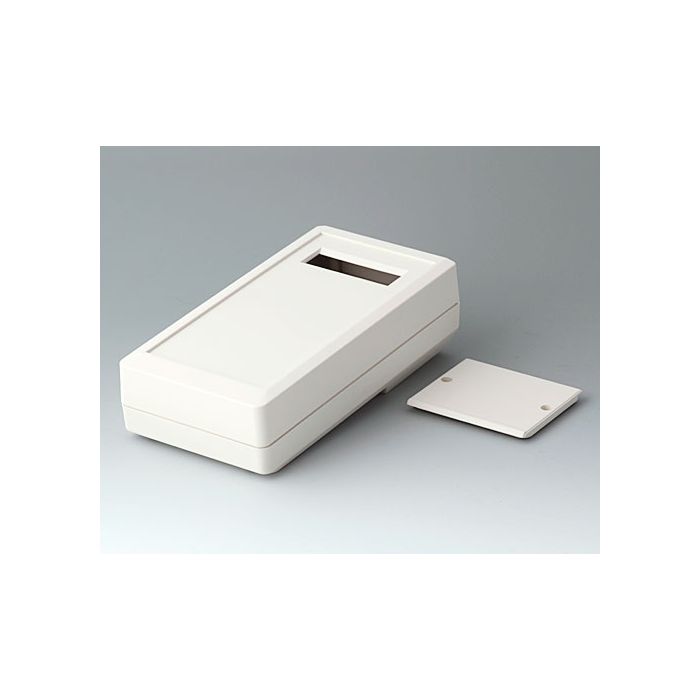

Medium-sized handheld box with large cutout area and keyboard control space
Universally applicable hand-held box of medium size. Large area for cutouts and openings. Recessed control area for keyboards. Lid of battery compartment in the base (battery compartment as accessory). Sealing for IP 65 as accessory. Version Top high with display cutout for standard-LCD modules with 2 lines x 16 characters Supply Case-top and base, battery compartment lid, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 101 mm |
| Length | 195 mm |
| Height | 59 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 165 mm |
| PCB Width, Base | 90 mm |
| PCB Length, Top | 184 mm |
| PCB Width, Top | 90 mm |
| Keypad Length | 167.7 mm |
| Keypad Width | 80.7 mm |
