VICTRON ENERGY - Lynx Smart BMS 500 (M10)
Lei 3,720.00
Lei 3,412.84
In stock
SKU
VICLYN034160210
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Pretul afisat este cu 9% TVA pentru persoane fizice sau institutii de stat. Pentru persoane juridice se va recalcula pretul cu 19% TVA dupa plasarea comenzii.

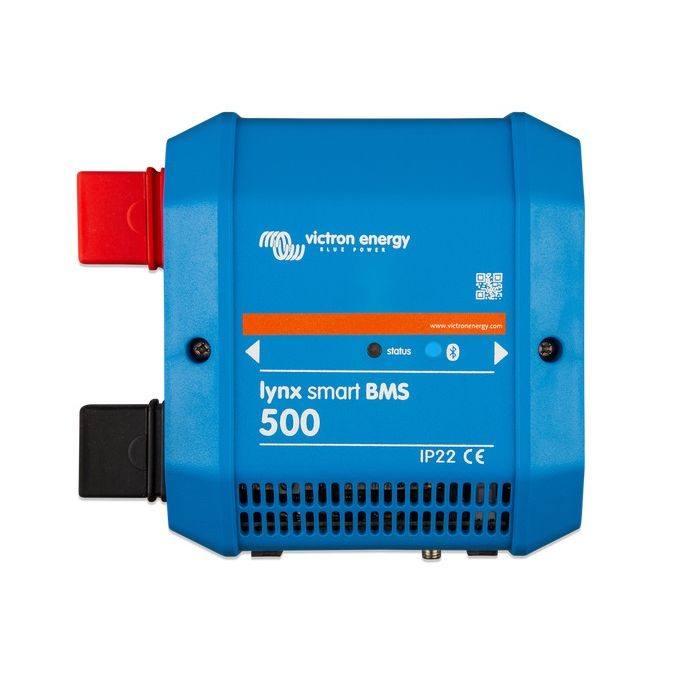

Lynx Smart BMS
The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A and 1000A (both with M10 busbar connections).
The main features are:
- Built-in 500A or 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
- Bluetooth for use with our VictronConnect app, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
- Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.
The Lynx Smart BMS is part of the modular Lynx Distribution system.
Documents & Downloads:
Write Your Own Review
| Manufacturer | VICTRON ENERGY |
|---|---|
| Manufacturer code | LYN034160210 |
| Order Unit | Pce |
| Battery voltage | 9 – 60 VDC |
| Operating temperature | -40 °C to +60 °C |
| Storage temperature | 40 °C to +60 °C |
| Humidity | Max. 95 % (non-condensing) |
| Protection class | IP22 |
| Weight Kg | 1,9 |
| Dimensions (h x w x d) | 190 x 180 x 80 mm |
| Standards | Safety EN-IEC 63000:2018 EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012 QMS NEN-EN-ISO 9001:2015 |
