Lynx Power In (M10)

This variant: Lynx Power In with M10 busbar (manufacturer code LYN020102010). "M10" refers only to the busbar joints where Lynx modules are bolted to each other; the fuse and cable connections are always M8. M10 modules cannot be connected directly to M8 modules and vice versa – choose the same busbar size as the rest of your Lynx system (Lynx Shunt VE.Can, Lynx Distributor, Lynx Smart BMS, Lynx Class-T Power In).

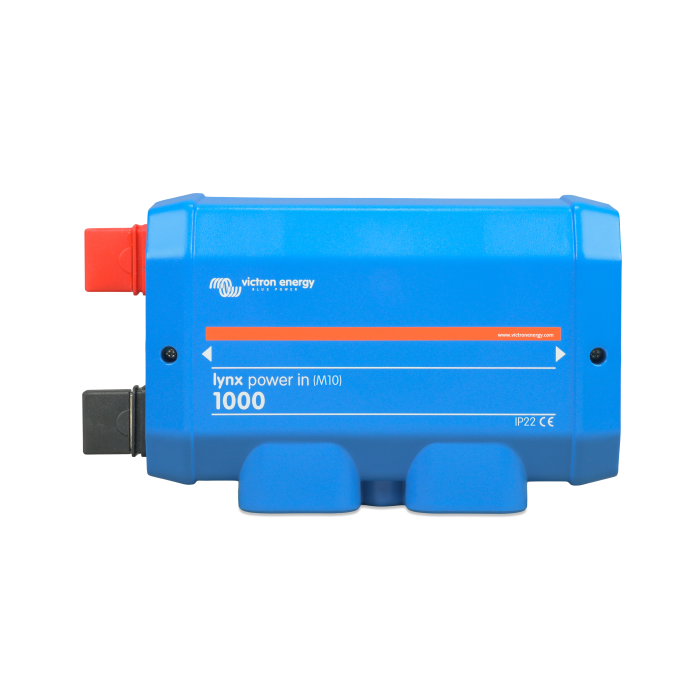

The Lynx Power In contains a positive and a negative busbar with 4 connections for batteries, loads or chargers, plus a ground connection. It is part of the modular Lynx Distribution System: each module connects to other Lynx modules on the left and right, forming a continuous positive and negative busbar with DC connections and, depending on the configuration, integrated fuses, a battery monitor and/or lithium battery management.

The Lynx Power In does not contain fuses – all connected batteries, loads or chargers must be fused externally (or use a Lynx Distributor for fused connections). It can be used on its own as a simple DC busbar, and several Lynx Power In modules can be joined to create a longer busbar with more connections. Typical use: connecting several batteries in parallel to a Lynx Shunt VE.Can / Lynx Smart BMS, with a Lynx Distributor on the load side.

Key features:

• Nominal current 1000 A continuous – 12 kW at 12 V, 24 kW at 24 V, 48 kW at 48 V
• Voltage range 9 – 60 V DC (12 / 24 / 48 V systems)
• 4 x positive and 4 x negative M8 connections, 1 ground connection
• Tinned copper busbars 8 x 30 mm; busbar joints M10 (torque 33 Nm)
• Removable rubber sleeves (left) and plastic barrier (right) for interconnecting modules
• Can be mounted in any orientation; stickers included for upside-down mounting

Technical specifications:

Documents & Downloads:

Manual

Enclosure dimensions

ISO9001 Certificate
