OKW - Large ergonomic hand-held box with membrane keyboard area and battery compartment.
Lei 112.00
Lei 94.12
Out of stock
SKU
A9068209
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

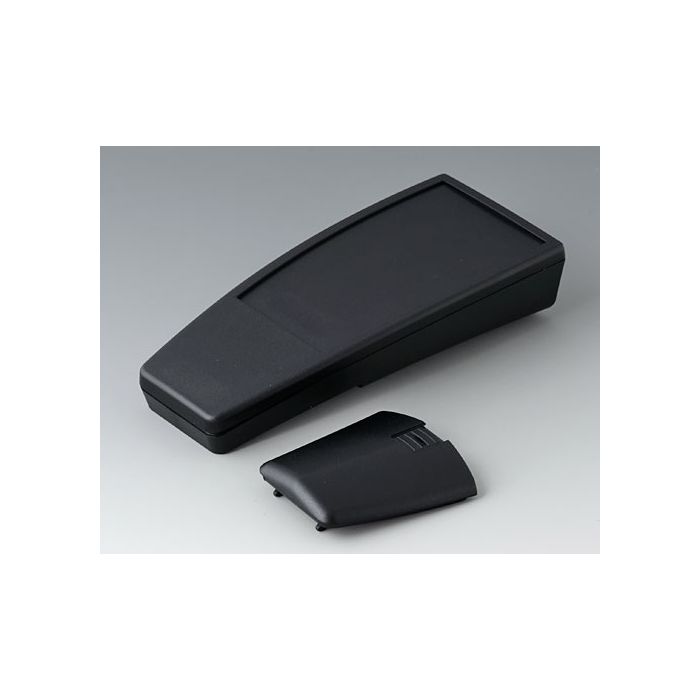

Large ergonomic hand-held box with membrane keyboard area and battery compartment.
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Version: With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3). Supply: Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9068209 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB), ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 74.4 mm |
| Length | 168 mm |
| Height | 35.4 mm |
| Protection class | IP 40 |
| PCB Length, Base | 84 mm |
| PCB Width, Base | 61 mm |
| PCB Length, Top | 94 mm |
| PCB Width, Top | 61 mm |
| Keypad Length | 110.5 mm |
| Keypad Width | 61.5 mm |
