OKW - Large ergonomic hand-held box with membrane keyboard area and battery compartment.
Lei 104.00
Lei 87.39
In stock
SKU
A9068109
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

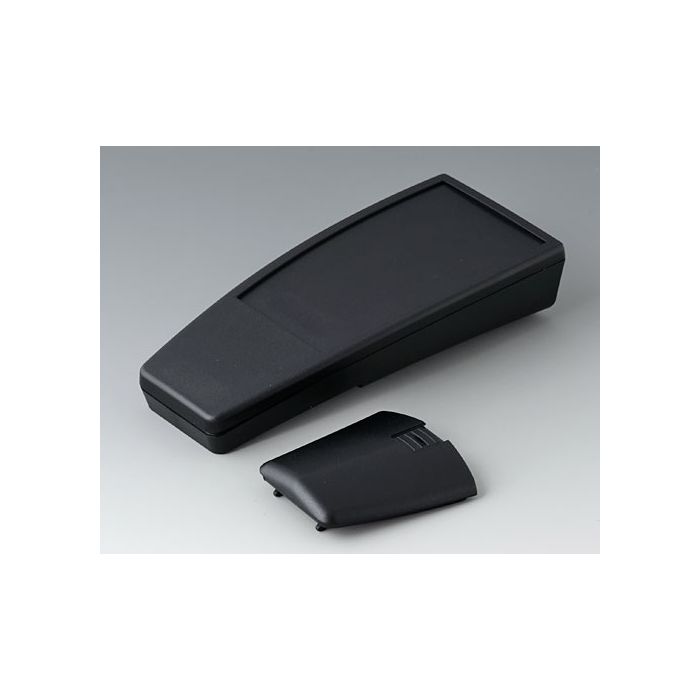

Large ergonomic hand-held box with membrane keyboard area and battery compartment.
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3) Supply Case-top and base, battery compartment lid, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9068109 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 74.4 mm |
| Length | 168 mm |
| Height | 35.4 mm |
| Protection class | IP 40 |
| PCB Length, Base | 84 mm |
| PCB Width, Base | 61 mm |
| PCB Length, Top | 94 mm |
| PCB Width, Top | 61 mm |
| Keypad Length | 110.5 mm |
| Keypad Width | 61.5 mm |
