OKW - Single-piece injection-moulded case with snap-on rear frame. DIN IEC 61554 compliant. Includes 2 guide ridges for PCBs. [96 mm x 48 mm x 109 mm]
Lei 80.00
Lei 66.12
In stock
SKU
B6032041
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Single-piece injection-moulded case with snap-on rear frame. DIN IEC 61554 compliant. Includes 2 guide ridges for PCBs.

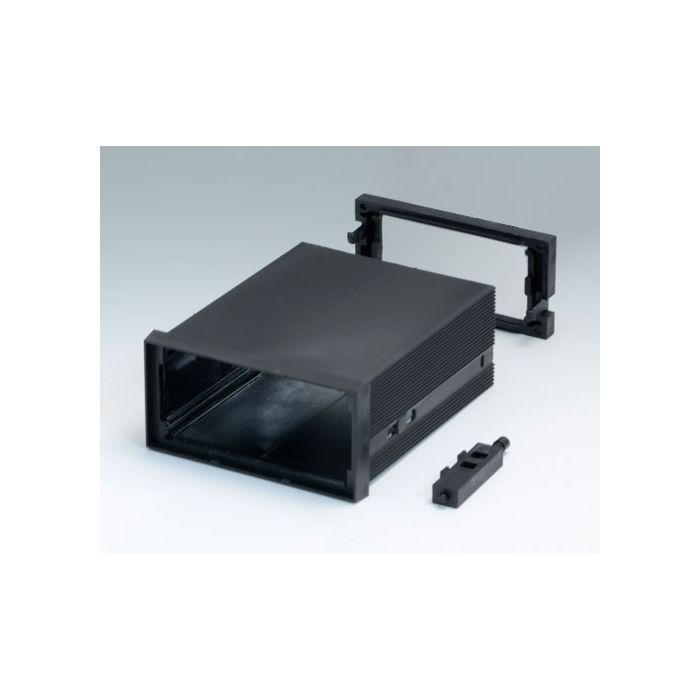

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554. Version With 2 guide ridges for mounting PCBs Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B6032041 |
|---|---|
| Manufacturer | OKW |
| Material | PPO (UL 94 V-0) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant, DIN IEC 61554 |
| Width | 96 mm |
| Height | 48 mm |
| Depth | 109 mm |
