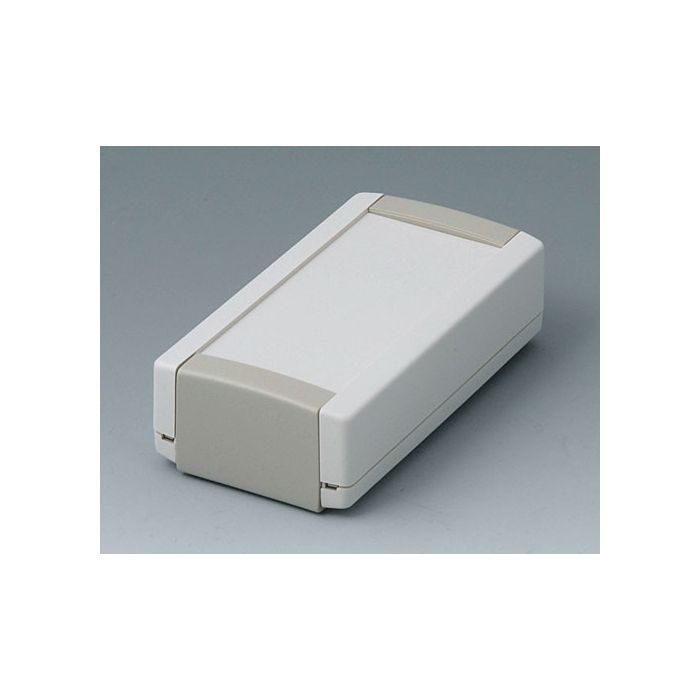

OKW - High version electronic case with snap-lock mechanism, screw towers for PCB mounting, no ventilation slots. Includes 1 case-top, base, 2 end panels
Lei 66.00
Lei 55.46
In stock
SKU
B1040365
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
High version electronic case with snap-lock mechanism, screw towers for PCB mounting, no ventilation slots. Includes 1 case-top, base, 2 end panels
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom. Version without ventilations slots. Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | Bottom and top part off-white RAL 9002, End panels pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 54 mm |
| Length | 102 mm |
| Height | 30 mm |
| Protection class | IP 40 |
| PCB Length, Base | 96 mm |
| PCB Width, Base | 46 mm |
| Keypad Length | 82.6 mm |
| Keypad Width | 38 mm |
