OKW - High version electronic case with snap-lock assembly and screw towers for PCB mounting.
Lei 116.00
Lei 97.48
In stock
SKU
B1070365
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

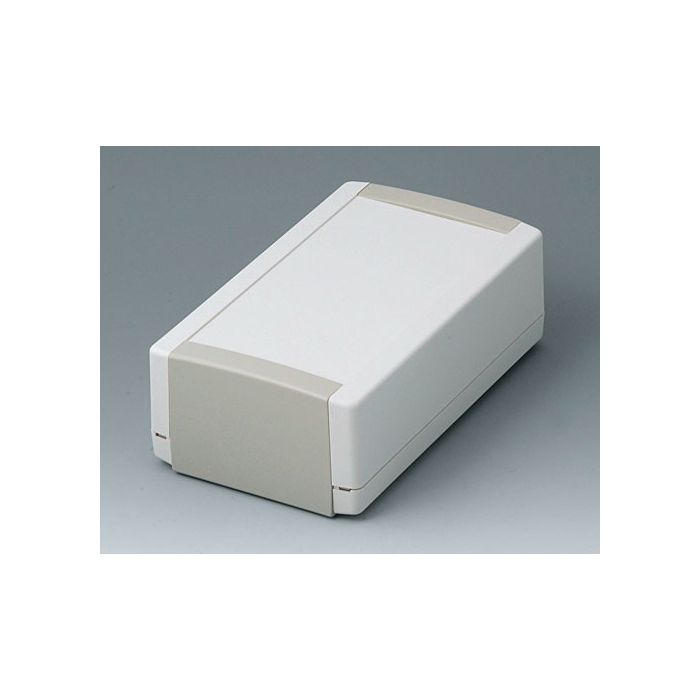

High version electronic case with snap-lock assembly and screw towers for PCB mounting.
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version: Without ventilations slots. Supply: 1 case-top and base, 2 end panels.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | Bottom and top part off-white RAL 9002, End panels pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 115 mm |
| Length | 194 mm |
| Height | 68 mm |
| Protection class | IP 40 |
| PCB Length, Base | 187 mm |
| PCB Width, Base | 104 mm |
| PCB Length, Top | 158 mm |
| PCB Width, Top | 106 mm |
| Keypad Length | 163 mm |
| Keypad Width | 84.9 mm |
