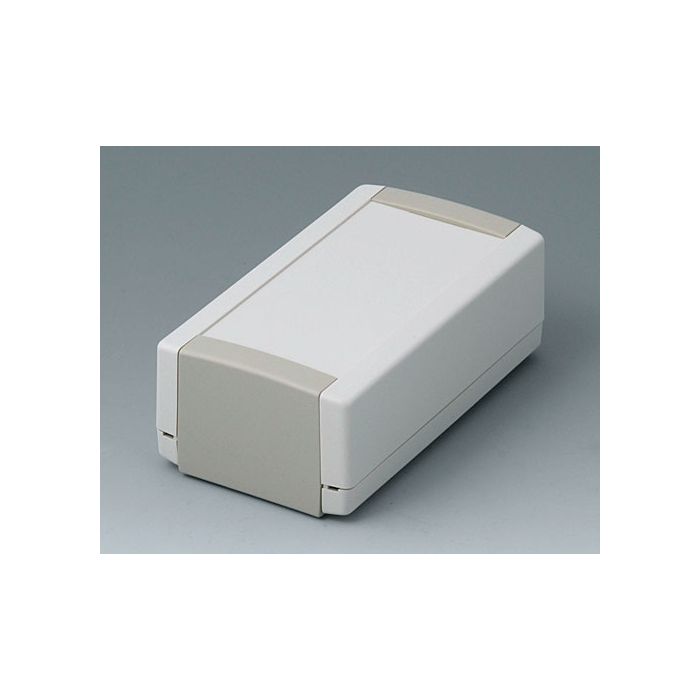

OKW - High version electronic case with snap-lock mechanism and screw towers for PCB mounting
Lei 78.00
Lei 65.55
In stock
SKU
B1050365
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
High version electronic case with snap-lock mechanism and screw towers for PCB mounting
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom. Version without ventilations slots. Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | Bottom and top part off-white RAL 9002, End panels pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 68 mm |
| Length | 123 mm |
| Height | 45 mm |
| Protection class | IP 40 |
| PCB Length, Base | 116 mm |
| PCB Width, Base | 60 mm |
| PCB Length, Top | 96 mm |
| PCB Width, Top | 60 mm |
| Keypad Length | 100.6 mm |
| Keypad Width | 48 mm |
